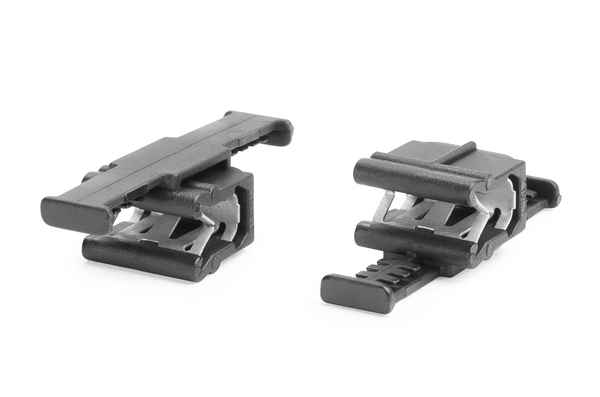

Bundling clip for edge, L=39.0mm, black, 500pcs.
Art.-No. 102-68375
| ATSBCEC37-PA66HIRHS-BK
|
Copied
- Easy assembly, just shuffle manually
Designed for edges of 1 - 3 and 1.5 - 4 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered steel spring
ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
Request your individual offer now
Request quote
More products in this product group:
| Application | This EdgeClip with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes. This product can beused on edges 1.5 - 4 mm. |
| Colour | Black (BK) |
| Fixation Method | Edge Clip |
| Key product features | products for automatic tools |
| Local order number | ATS BCEC37 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 80N |
| PART DESCRIPTION | ATSBCEC37-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | for panel thicknesses of 1.0 - 4.0 mm |
| Product Group | Bundling clips with edge clips |
| Short Description | Bundling clip 39x9 mm, high impact modified, heat stabilised, black |
| Type | ATSBCEC37 |
| Weight/Unit | 0.002089kg |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026333120 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.005630625m³ |
| Packaging 1 - Weight (kg) | 1.058362kg |
| Packaging 1 - Width (m) | 0.315m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 11.23862kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 290.76kg |
| Packaging 4 - Width (m) | 0.8m |
