Bundling clip for hole (round), L=77.8mm, black, 2000pcs.
Art.-No. 151-02065 | BC with tube-Oval-PA66HIRHS-BK |

The Bundling Clip

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bundling Clips with Arrowhead, for wires >

Base Data

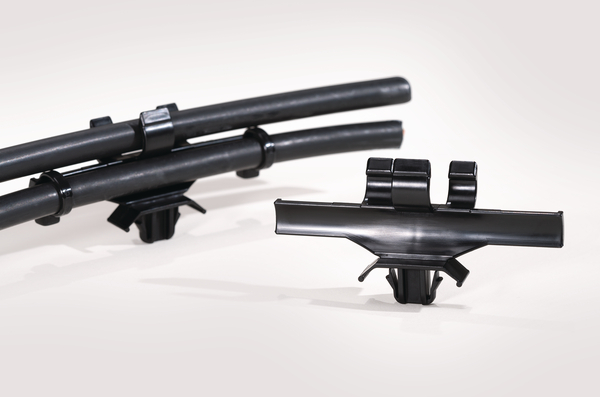

Application	Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour	Black (BK)
Fixation Method	Bundling Clip
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Local order number	BC with tube retainer-Oval/PA66HIRHS/BK/3000
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material Head	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	BC with tube-Oval-PA66HIRHS-BK
Package Content	2000pcs.
Package Content packed in	Carton
Product Family	Oval holes
Product Group	Bundling Clips with Arrowhead, for wires
Type	BC with tube-Oval
Weight/Unit	0.0024kg

Product Dimensions

Attach to ⌀	11.0
Bundling Bar Length	77.8mm
Fixing Hole Shape	Oval
Height (H)	39.1mm
Length (L)	77.8mm
Panel Thickness max.	0.7 - 3.0mm
Width (W)	18.2mm
for Hole ⌀ (FH)	6.5 x 13.0 mm
for Panel Thickness min - max	0.7 - 3 mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
Customs Number	39269097
GTIN-13 / EAN	4031026598475
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Weight (kg)	1.200001kg
Packaging 3 - Qty	3000
Packaging 3 - Type	Carton
Packaging 3 - Weight (kg)	7.200006kg

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
