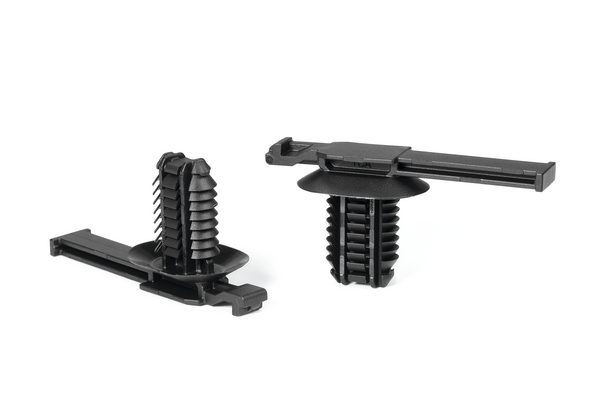

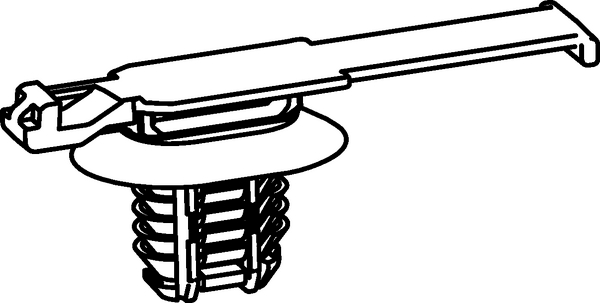

Connector clip, EWCAP-005-11, black, 1000pcs.
Art.-No. 151-02529 | BCC51FTOVAL-PA66HIRHS-BK |  Details

Connector Clip for Connectors with 11.0 mm slot and Bundling Clip.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number BCC51FTOVAL-PA66HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    PART DESCRIPTION BCC51FTOVAL-PA66HIRHS-BK
    for Hole ∅ (FH) 6.2 - 12.2 mm, 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 6 mm
    Height (H) 20.0mm
    Length (L) 51.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.001485kg
    Width (W) 17.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026611075
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01511m³
    Packaging 1 - Weight (kg) 1.514135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.93308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 176.184kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
