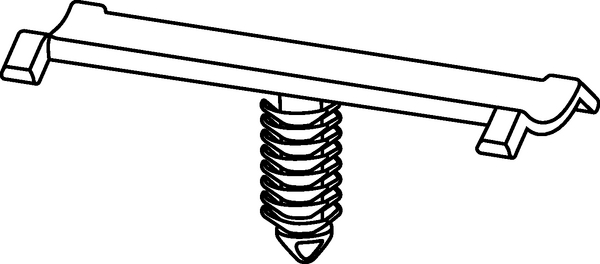

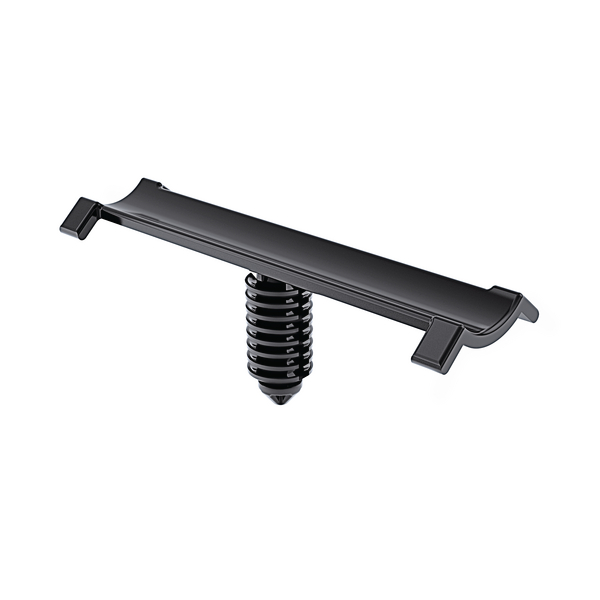

Bundling clip for hole (round), L=56.0mm, black, 5000pcs.
Art.-No. 151-00662 | BCFT6XL56-PA66HIRHS-BK Details

  • Easy to install without the need for a tool
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Holding tabs prevent the tie slipping sideways
  • Versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

Colour Black (BK)
Fixation Method Fir Tree
Local order number BCFT6XL56-PA66HIRHS-H1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCFT6XL56-PA66HIRHS-BK
Pack Cont. 5000pcs.
Package Content packed in Bag
Product Group Bundling Clips with Fir Tree
Short Description Bundling Clip, round hole 6.3 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
Type BCFT6XL56
Bundling Bar Length 56.0mm
Length (L) 56.0mm
Panel Thickness max. 0.7 - 9.0mm
Weight/Unit 0.001383kg
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.7 - 9 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026298887
Packaging 1 - Height (m) 0.8m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.192
Packaging 1 - Weight (kg) 6.980411kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.630411kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 173.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
