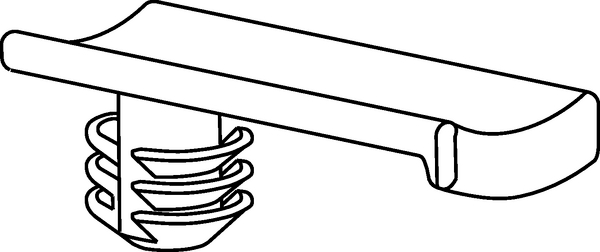

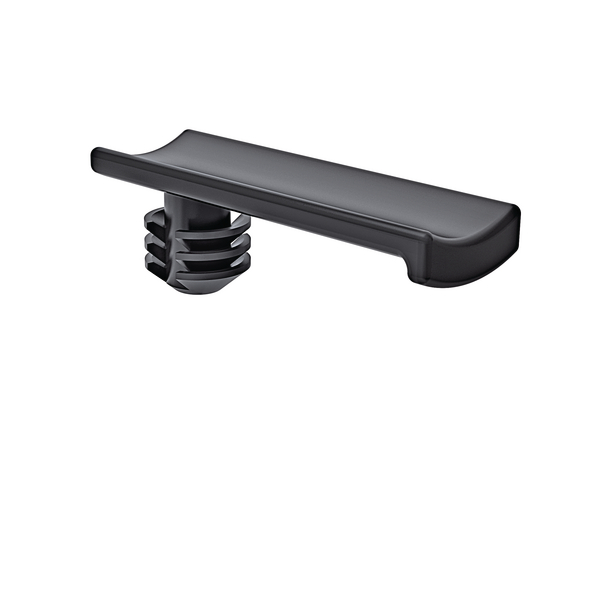

Bundling clip for hole (round), L=24.9mm, black, 25000pcs.
Art.-No. 151-01872 | BCOWFT5-PA66HIRHS-BK

Copied

Request your individual offer now

Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
Colour Black (BK)
Local order number BCOWFT5_PA66HIRHS_BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCOWFT5-PA66HIRHS-BK
Package Content 25000pcs.
Package Content packed in Bag
Product Family Bundling Clip, One Wing
Product Group Tape on clips PA66HIRHS BCFT5
Short Description Bundling Clip, round hole 5.2 - 5.6 mm, fir tree, high impact modified, heat stabilised, black
Type BCOWFT5
Weight/Unit 0.000383kg
Bundling Bar Length 24.9mm
Height (H) 8.3mm
Length (L) 24.9mm
Panel Thickness max. 0.6 - 3.1mm
Width (W) 8.0mm
for Hole ⌀ (FH) 5.2 - 5.6 mm
for Panel Thickness min - max 0.6 - 3.1 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026576534
Packaging 1 - Qty 25000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 9.641663kg
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 25000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.603663kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 500000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 233.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
