Cable clip for hole (round), Ø4.8 mm, black, 100pcs.
Art.-No. 201-10030 | C3-PA6HIR-BK Details

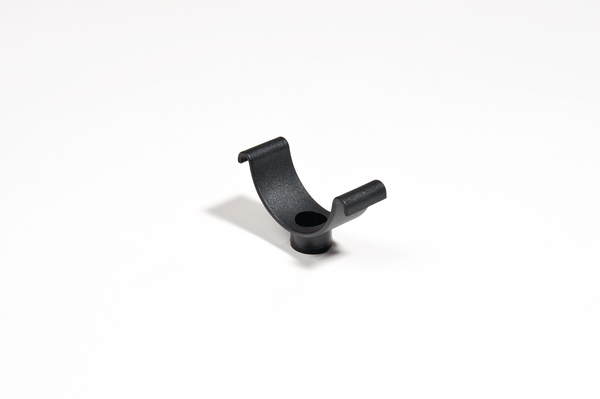

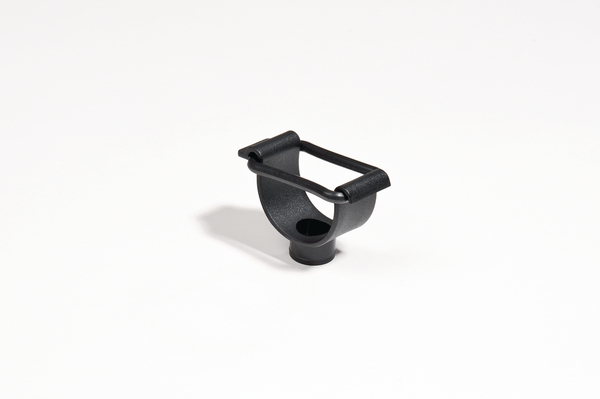

  • 2-piece fixing part consists of clamp and retaining ring
  • Suitable for pre-assembly and prototyping
  • Useful for applications requiring addition or removal of cables

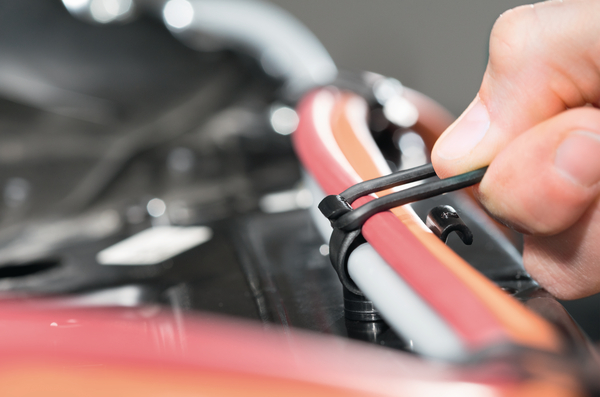

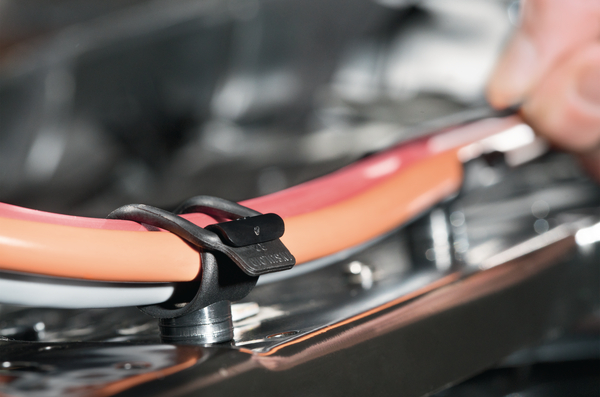

  • Simply stretch loop over clip for simple and quick cable containment

Request your individual offer now

Application Simple and versatile method of bundling cables. These clamps consist of two parts. The clamping base for mounting onto a panel and the elastical loop.
Colour Black (BK)
Fixation Method Screw Mounting
Local order number C3.NB3P
Material Polyamide 6, high impact modified (PA6HIR)
PART DESCRIPTION C3-PA6HIR-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family Cradle clamp
Product Group Clamps with elastical loop
Short Description Cradle Clip with elasticated loop black
Type C3

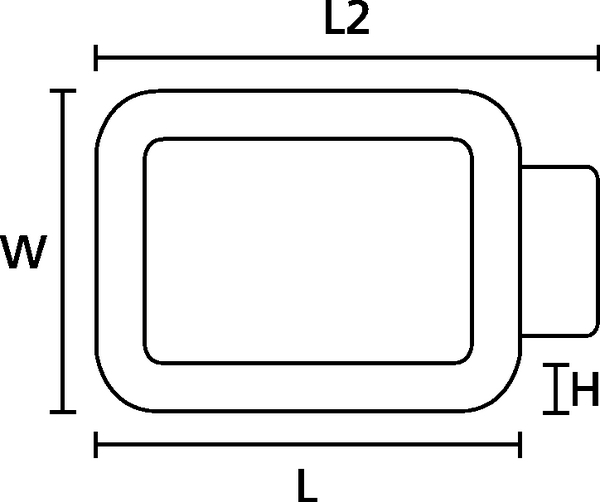

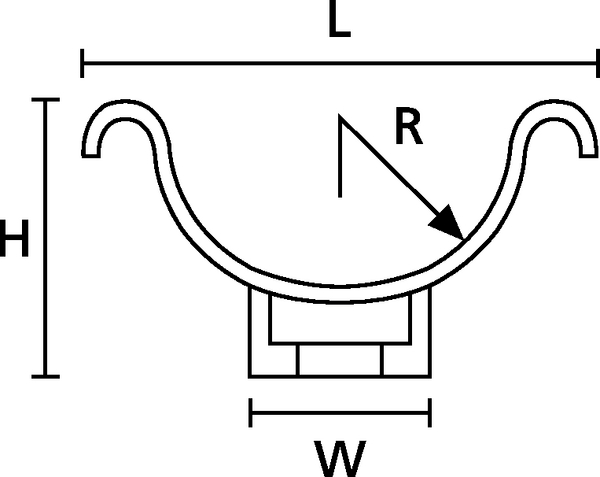

Height (H) 25.0mm
Length (L) 48.0mm
Radius (R) 17.5mm
Weight/Unit 0.003kg
Width (W) 12.7mm
Width (W2) 15.5mm
for Hole ∅ (FH) 4.8 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5340-12-159-3187
Operating Temperature -35 °C to +50 °C
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 5022660020926
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00183
Packaging 1 - Weight (kg) 0.300001kg
Packaging 1 - Width (m) 0.325m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.65003kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 214.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
