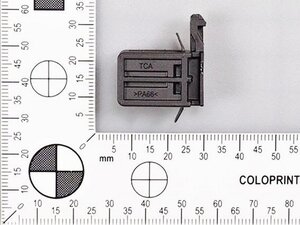

Connector clip for connector/for edge, black, 1000pcs.
Art.-No. 151-03927 | CC11EC1-2-PA66HIRHS-BK |

Copied

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Newly developed EdgeClip clip design without metal clip and reduced clip-on forces
    Colour Black (BK)
    Fixation Method Edge Clips without metal insert
    Key product features ergonomic design
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC11EC1-2-PA66HIRHS-BK

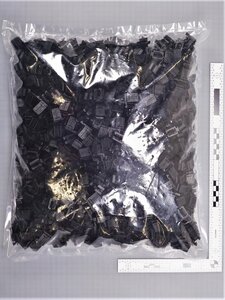

    Package Content 1000pcs.
    Package Content packed in Bag
    Type CC11EC1-2
    Type of connection USCAR11
    Variant 11 mm USCAR Connector Clip
    Weight/Unit 0.00268kg
    Height (H) 23.9mm
    Length (L) 29.7mm
    Length (L2) 24.9mm
    Panel Thickness max. 3.0mm
    Width (W) 15.3mm
    Width (W2) 10.0mm
    Width (W3) 5.75mm
    for Hole ⌀ (FH) 6.5 mm
    for Panel Thickness min - max 3 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026711737
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0159975m³
    Packaging 1 - Weight (kg) 2.709135kg
    Packaging 1 - Width (m) 0.45m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
