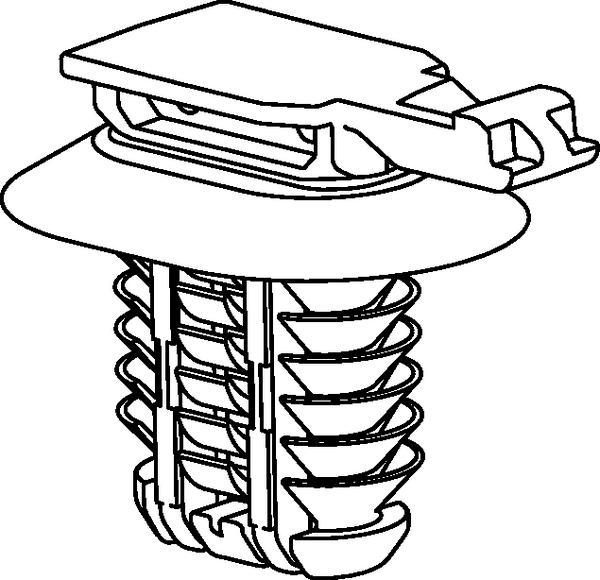

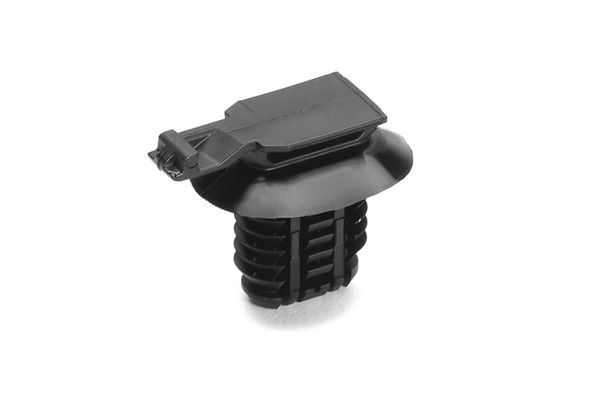

Connector clip, EWCAP-005-11, black, 5000pcs.
Art.-No. 151-01297 | CC16-PA66HIRHSUV-BK |

Copied
Oval fir tree ensures a tight connection without rotation.

    • HellermannTyton connector clips provide a simple and easy method for mounting connectors to a mounting surface in a variety of applications.
    • Detailed designs include anti-rattle disc features, anti-rotation oval fir trees, and clamps for mounting on edges.
    • HellermannTyton offers an assortment of connector clips that are available for a variety of connector slot designs found on most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Connector Clips are designed with various fixing point designs, to accommodate the many connectors out in the market. This specific connector clip is designed for a commonly used automotive connector. The width and the height of the fixation point creates minimal rattle when secured. The innovative design of the fir tree creates an interface with four different size holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Local order number 151-01297
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 110N
    PART DESCRIPTION CC16-PA66HIRHSUV-BK
    Package Content 5000pcs.
    Package Content packed in Pack
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Short Description Connector clip, EWCAP-005-11, black, 5000pcs.
    Type CC16
    UV-Stabilised Yes
    Weight/Unit 0.001693kg
    Fixing Hole Shape Oval
    Height (H) 23.4mm
    Height (H2) 15.8mm
    Length (L) 30.0mm
    Panel Thickness 0.6 - 7.75mm
    Width (W) 18.2mm
    for Hole ⌀ (FH) 8.0 x 14.0 mm, 8.0 x 15.0 mm
    for Panel Thickness min - max 0.6 - 7.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026509877
    Packaging 1 - Qty 5000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 8.465001kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 9.325001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 160.875kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
