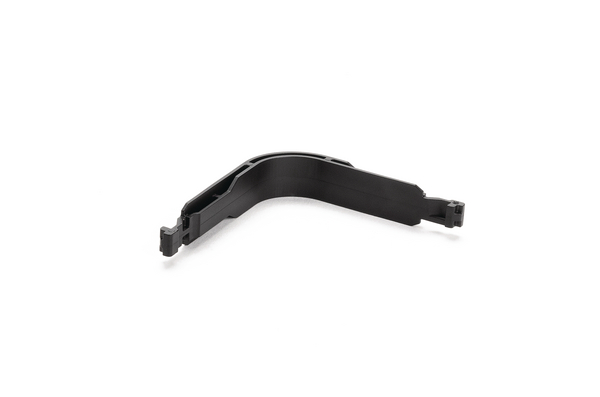

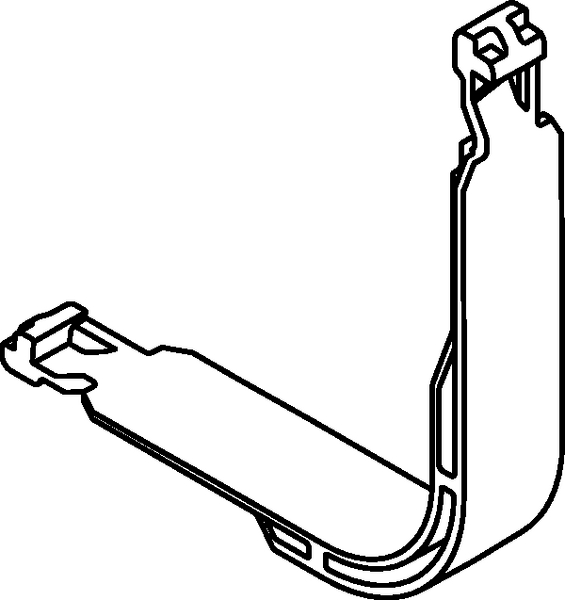

Connector clip for connector, black, 3000pcs.
Art.-No. 151-01249
| CC90BRKT-PA66HIRHSUV-BK
|
Copied
- Easy to install by simply pushing into place
- Connection can be released (non-destructive)
- One fit tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dust and dirt gaining access
Request quote
More products in this product group:
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Colour | Black (BK) |
| Local order number | 151-01249 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CC90BRKT-PA66HIRHSUV-BK |
| Package Content | 3000pcs. |
| Package Content packed in | Pack |
| Product Group | Bundling Clips for Connectors |
| Type | CC90BRKT |
| UV-Stabilised | Yes |
| Weight/Unit | 0.0006kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026478166 |
| Packaging 1 - Height (m) | 0.355m |
| Packaging 1 - Length (m) | 0.584m |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05784228m³ |
| Packaging 1 - Weight (kg) | 1.800001kg |
| Packaging 1 - Width (m) | 0.279m |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 2.545001kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.254m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.204m³ |
| Packaging 4 - Weight (kg) | 52.54kg |
| Packaging 4 - Width (m) | 0.8m |
