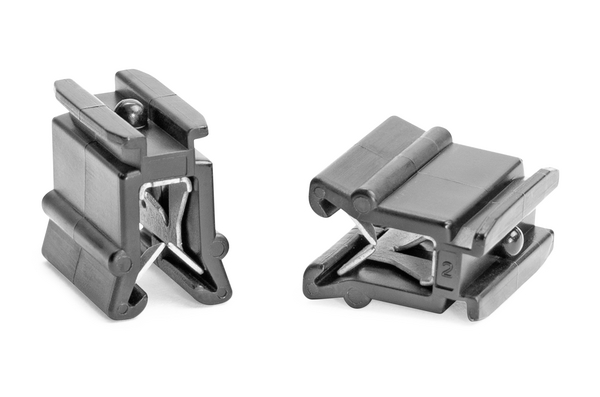

Connector clip for edge, black, 500pcs.
Art.-No. 151-01124 | CCIIEC6-MOD-PA66HIRHS-BK |

Copied

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clip used here have been desgined in the automotive industry
    Colour Black (BK)
    Local order number CCIIEC6-MOD-HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCIIEC6-MOD-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in Bag
    Product Family 1 - 3 mm, 1.5 - 4 mm and 3 - 6 mm
    Product Group Connector Clips for Edges
    Short Description Connector clip, edge, black
    Type CCIIEC6-MOD
    Weight/Unit 0.00144kg
    Height (H) 13.9mm
    Length (L) 7.8mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 9.4mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026458977
    Packaging 1 - Height (m) 0.72m
    Packaging 1 - Length (m) 0.325m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0585m³
    Packaging 1 - Weight (kg) 0.720001kg
    Packaging 1 - Width (m) 0.25m
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0489m³
    Packaging 3 - Weight (kg) 15.10502kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 323.1kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
