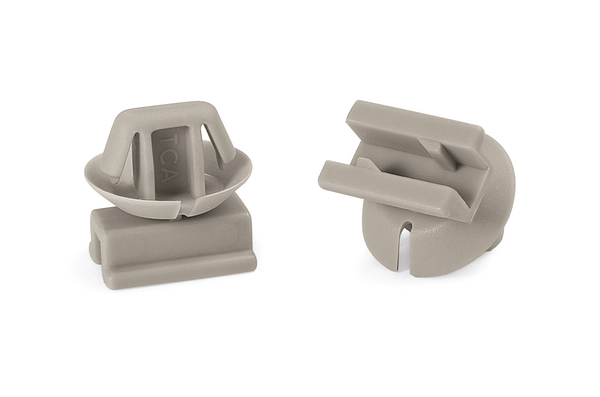

Connector clip for hole (oval), grey, 500pcs.

Art.-No. 151-00222

| CCSFT7x12-PA66HIRHS-GY

|

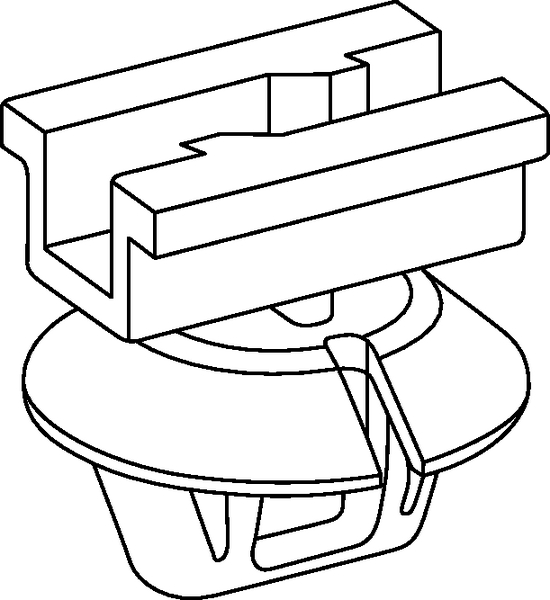

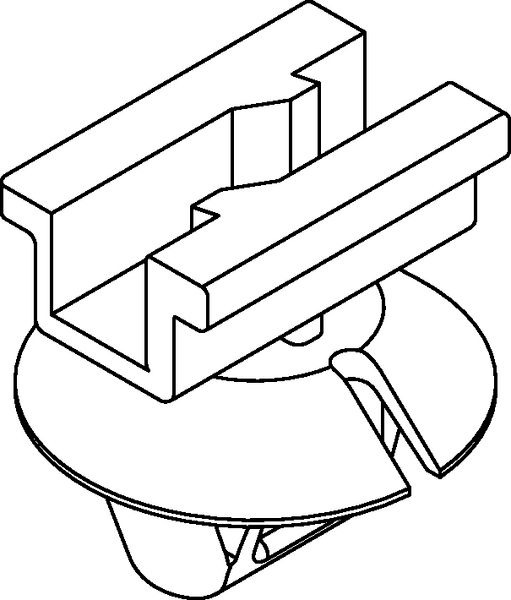

ConnectorClip for oval holes 7x12 mm, in line.

Simple installation, tool-free
Plugs can simply be pushed onto the
holder
Rattle-free fit of the plug

Add to watchlist

Request quote

Distributors near you

Downloads CAD-Download

More products in this product group:

Connector Clips for oval holes

Base Data

Application	The connector holders are used in cable assembly and the electrical industry, for example. The plugs can be fitted by simply sliding them on and removed again if required.
Colour	Grey (GY)
Fixation Method	Arrowhead for oval holes
Local order number	CCSFT7x12.HIRHSE6P
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CCSFT7x12-PA66HIRHS-GY
Package Content	500pcs.
Package Content packed in	Bag
Product Group	Connector Clips for oval holes
Short Description	Connector Clip for oval holes, grey
Type	CCSFT7x12
Weight/Unit	0.001098kg

Product Dimensions

Height (H)	17.6mm
Length (L)	16.0mm
Panel Thickness	0.8 - 2.0mm
for Hole ⌀ (FH)	7.0 x 12.0 mm
for Panel Thickness min - max	0.8 - 2 mm

Specifications

ELV compliant Dir. Art. 4 (2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026263441
Packaging 1 - Height (m)	0.045m
Packaging 1 - Length (m)	0.21m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0025515m³
Packaging 1 - Weight (kg)	0.562862kg
Packaging 1 - Width (m)	0.27m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	12000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	13.152688kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.249m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	144000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.199m³
Packaging 4 - Weight (kg)	178.872kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
