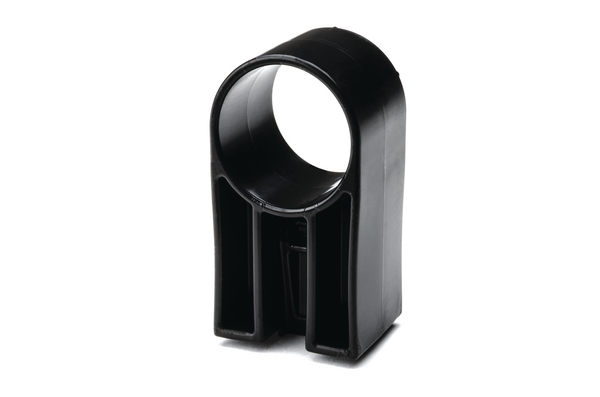

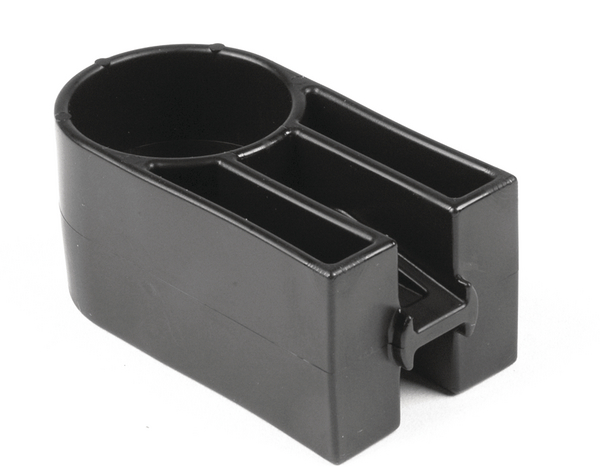

Corrugated tube clip, black, 250pcs.
Art.-No. 151-00006
| CGS1-PA66HIRHSUV-BK
|
Copied

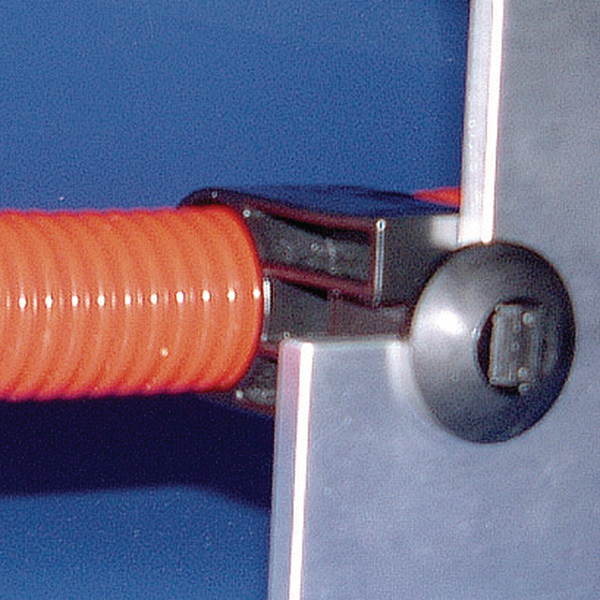

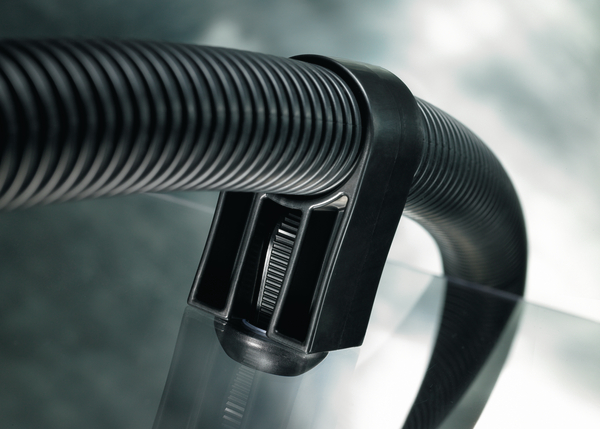

- Tubes are fixed a defined distance from the substructure
- Defined diameter for the wire entry
- Retainer is fixed in the hole with BHT-tie
Request your individual offer now
Request quote
More products in this product group:
| Application | With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries. |
| Colour | Black (BK) |
| Key product features | for convoluted tubes or with rib |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CGS1-PA66HIRHSUV-BK |
| Package Content | 250pcs. |
| Package Content packed in | Pack |
| Product Family | CGS1 for Convoluted Tubes |
| Product Group | Fixing Elements for BHT-Ties, for Distance Routing |

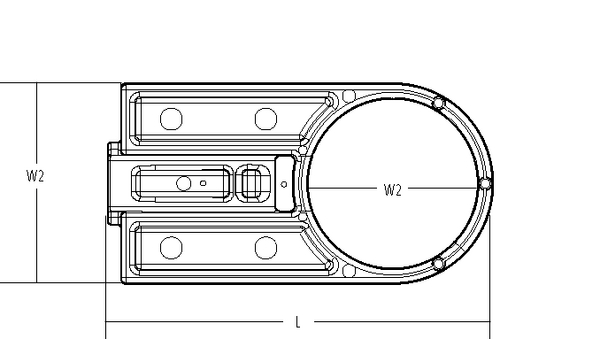

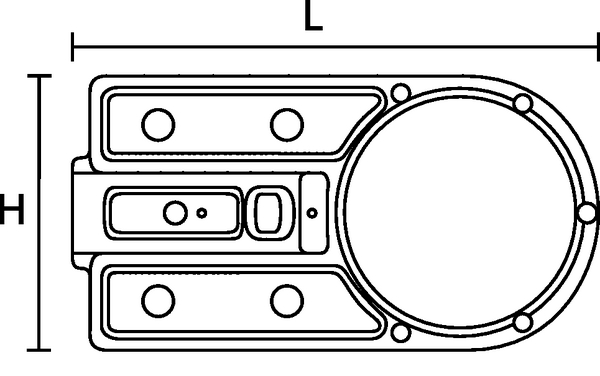

| Short Description | Fixing Element 56.6x30.5 mm, for distance tubing routing, high impact modified, heat and UV-stabilised, black |
| Type | CGS1 |
| UV-Stabilised | Yes |
| Variant | Mounts |
| Weight/Unit | 0.0038kg |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026312804 |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 0.950001kg |
| Packaging 3 - Height (m) | 0.1397m |
| Packaging 3 - Length (m) | 0.51276m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0223m³ |
| Packaging 3 - Weight (kg) | 1.470001kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 8000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.213m³ |
| Packaging 4 - Weight (kg) | 68.04kg |
| Packaging 4 - Width (m) | 0.8m |
