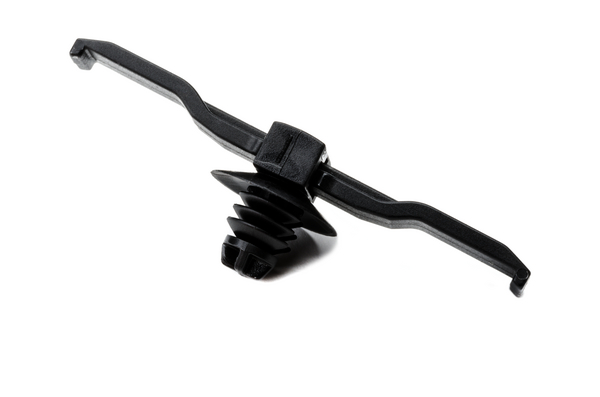

Bundling clip for hole (round), L=54.0mm, black, 500pcs.
Art.-No. 151-02901 | CHA2-PA66-BK |

Copied
Perfect for securing cable bundles, hoses or pipes.
Perfect for securing cable bundles, hoses or pipes.
The CHA2 with fir tree base and length tolerance compensation for precise cable routing even in difficult conditions.
CHA2-PA66-BK.
Perfect for securing cable bundles, hoses or pipes.

    • Easy to install without the need for a tool
    • Horizontal length tolerance compensation
    • Ideal if holes do not fit registration or bundles need to be routed around corners
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application An easy means of routing and securing cable sets in various parts of cars.
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CHA2-PA66-BK
    Package Content 500pcs.
    Package Content packed in Pack
    Product Family for lateral adjustment
    Product Group Bundling clips for round holes with fir tree
    Short Description Moveable Bundling Clip with Fixing and Fir Tree 54x6.0 mm, black
    Type CHA2
    UV-Stabilised No
    Weight/Unit 0.00131kg
    Wings on clip base (Yes / No) YES
    Bundling Bar Length 2.13"
    Bundling Bar Length 54.0mm
    Disc ⌀ 14.0mm
    Fixing Hole Shape Circular
    Height (H) 7.7mm
    Height (H2) 8.0mm
    Length (L) 54.0mm
    Length of Fir Tree 8.0mm
    Panel Thickness max. 0.8 - 2.0mm
    Width (W) 6.0mm
    for Hole ⌀ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 2 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026232140
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0027195m³
    Packaging 1 - Weight (kg) 0.655001kg
    Packaging 1 - Width (m) 0.185m
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0828m³
    Packaging 3 - Weight (kg) 13.75502kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 186.06kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
