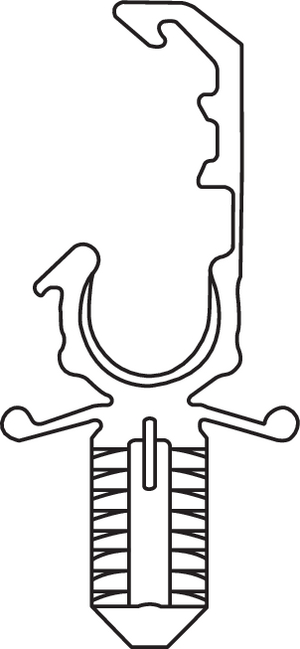

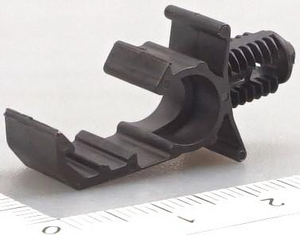

Corrugated tube clip for hole (round)/with pipe/tube holder, nom⌀7.0mm, black, 500pcs.
Art.-No. 151-01038
| CNCTC8FT6.5LG-PA66HIRHS-BK
|
Copied
- CTC clamps for a variety of nominal diameters
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
Request your individual offer now
Request quote
More products in this product group:
| Application | CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | for convoluted tubes or with rib, removable, lockable |
| Local order number | CNCTC8FT6.5LG-HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CNCTC8FT6.5LG-PA66HIRHS-BK |

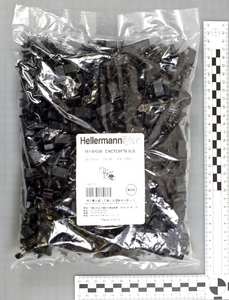

| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | CNCTC-Series with cover |
| Product Group | Fixing Elements for Tubes and Harnesses |
| Short Description | Convoluted Tubing Clip, round holes 6.5 - 6.7 mm, fir tree, high impact modified, heat stabilised, black |
| Type | CNCTC8FT6.5LG |
| Weight/Unit | 0.000764kg |
Download
|
|
|
| Country of Origin | CN |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026492261 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.32m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00368m³ |
| Packaging 1 - Weight (kg) | 0.388kg |
| Packaging 1 - Width (m) | 0.23m |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.57m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0489m³ |
| Packaging 3 - Weight (kg) | 6.913kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 160000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 159.26kg |
| Packaging 4 - Width (m) | 0.8m |
