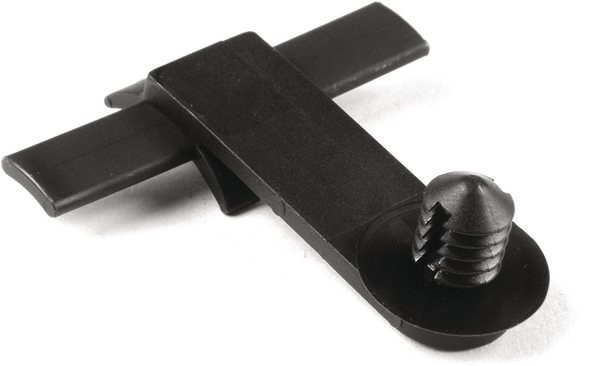

Bundling clip for hole (round), L=42.0mm, SO=30.0mm, black, 500pcs.
Art.-No. 151-03200
| COW30DP7-PA66-BK
|
Copied
- Easy to install without the need for a tool
- One fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Disc covers the hole to prevent dust and dirt gaining access
- Bundle runs in a set distance to the hole
Request your individual offer now
Request quote
More products in this product group:
| Application | Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Local order number | COW30DP7.NB6P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | COW30DP7-PA66-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | pcs. |
| Product Group | Bundling Clips with Fir Tree, for Distance Routing |
| Short Description | Bundling Clip, round hole 6.3 - 7.0 mm;6.1 - 6.6 mm (hexagonal), fir tree, offset, in PA66 black - COW30DP7 |
| Type | COW30DP7 |
| Wings on clip base (Yes / No) | NO |
| Bundling Bar Length | 42.0mm |
| Disc ⌀ | 16.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 6.6mm |
| Length (L) | 42.0mm |
| Length (L2) | 30.0mm |
| Length of Fir Tree | 9.4mm |
| Offset Length | 30.0mm |
| Panel Thickness max. | 0.8 - 4.5mm |
| Weight/Unit | 0.002301kg |
| Width (W) | 42.0mm |
| for Hole ⌀ (FH) | 6.1 - 6.6 mm (hexagonal), 6.3 - 7.0 mm |
| for Panel Thickness min - max | 0.8 - 4.5 mm |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660302671 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.41m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00861m³ |
| Packaging 1 - Weight (kg) | 1.1695kg |
| Packaging 1 - Width (m) | 0.35m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 7.617kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 203.808kg |
| Packaging 4 - Width (m) | 0.8m |
