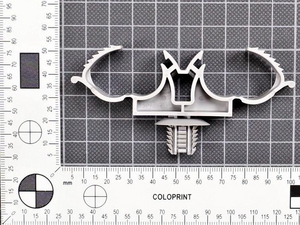

Cable clip for hole (oval)/for cable bundles, T=0.6 - 5.0mm, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=12.2mm, Dmax=18.2mm

Art.-No. 151-02966

| DHC12.2-18.2FTOVAL-PA46-GY

|

Fixing element for parallel routing of two harnesses or tubes (12.2 - 18.0mm).

2-way clip for bundling and securing cables, for oval holes
For parallel / multiple routing
can be used without cable ties due to clip function
Ratchet function allows for different cable diameters
Clip can be opened for maintenance purposes without damaging the clip

Add to watchlist

Request quote

Distributors near you

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

Base Data

Application	The clips are used to guide HV cables, harnesses and tubes. The products are designed to offer high stability within the application. The ratchet closure makes it possible to guide different cable diameters in parallel.
Colour	Grey (GY)
Key product features	for multiple routing, for direct fixation, lockable, releasable, for faster processing
Local order number	DHC12.2-18.2FTOVAL-PA46-GY
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	DHC12.2-18.2FTOVAL-PA46-GY

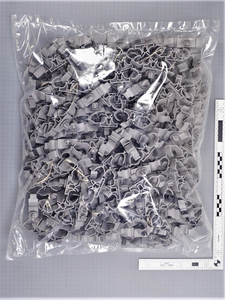

Package Content	300pcs.
Package Content packed in	Bag
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Short Description	2-way clip for parallel routing of HV cables, harnesses and tubes.
Type	DHC12.2-18.2FTOVAL
Weight/Unit	0.010665kg

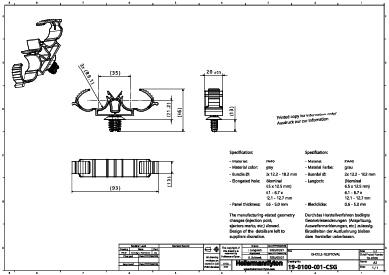

Product Dimensions

Attach to ⌀	12.2 - 18.2
Bundle ⌀	12.2-18.2mm
Bundle ⌀ max.	18.2mm
Bundle ⌀ min.	12.2mm
Height (H)	46.0mm
Length (L)	93.0mm
Panel Thickness	0.6 - 5.0mm
Width (W)	20.0mm
for Hole ⌀ (FH)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 12.2 mm
for Panel Thickness min - max	0.6 - 5 mm

Specifications

ELV compliant Dir. Art. 4 (2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026625546
Packaging 1 - Height (m)	0.11m
Packaging 1 - Length (m)	0.46m
Packaging 1 - Qty	250
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.019734m³
Packaging 1 - Weight (kg)	2.709847kg
Packaging 1 - Width (m)	0.39m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121705
