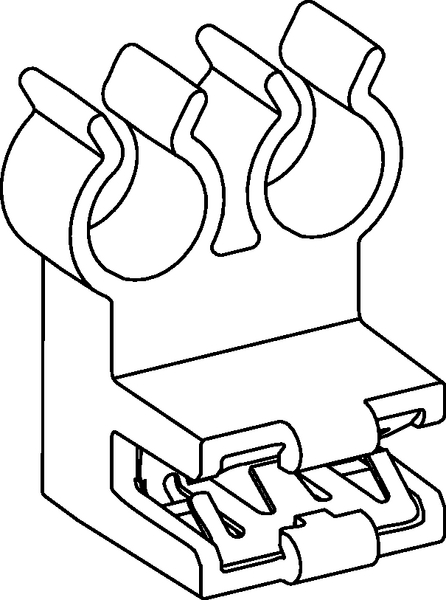

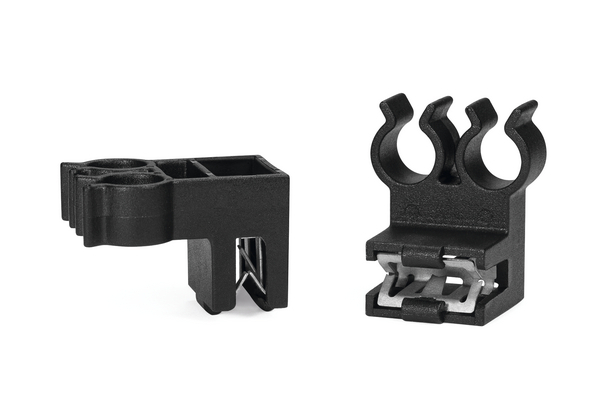

Cable clip for edge, T=1.5 - 4.0mm
Art.-No. 151-02865
| DLOC8EC1.5-4-90-PA6GF15-BK
|
Copied
Request quote
| Cable ⌀ max | 8.2mm |
| Cable ⌀ min | 7.9mm |
| Colour | Black (BK) |
| Fixation Method | EdgeClip, sideway |
| Local order number | DLOC8EC3-6 90_PA66HSGF30_BK |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF15) |
| PART DESCRIPTION | DLOC8EC1.5-4-90-PA6GF15-BK |
| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Type | DLOC8EC1.5-4-90 |
| Weight/Unit | 0.003206kg |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026620640 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.43m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0094815m³ |
| Packaging 1 - Weight (kg) | 1.624815kg |
| Packaging 1 - Width (m) | 0.315m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 12.434075kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 319.44kg |
| Packaging 4 - Width (m) | 0.8m |
