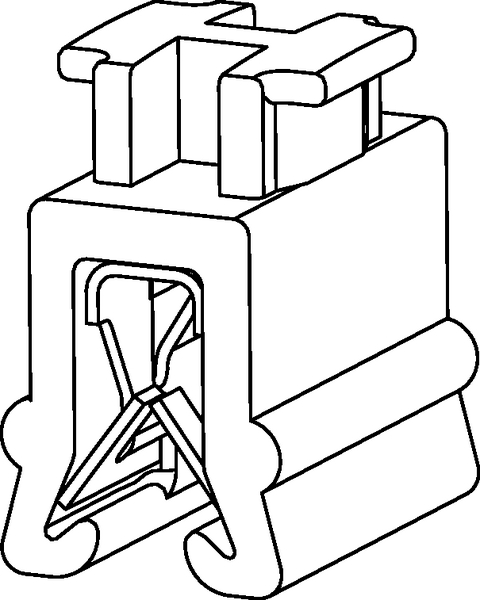

Connecteur clip for edge 1-3mm in PA66HIRHS black - EC JAE CC
Art.-No. 151-00472 | EC JAE CC |

Copied

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
    Anti rotation (Yes / No) NO
    Local order number EC JAE CC-HIRHS-BK-D1
    PART DESCRIPTION EC JAE CC
    Package Content 1000pcs.
    Package Content packed in Bag
    Short Description Connecteur clip for edge 1-3mm in PA66HIRHS black - EC JAE CC
    Type EC JAE CC
    Weight/Unit 0.00146kg
    Height (H) 15.8mm
    Length (L) 15.0mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 9.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026282619
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.481815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 15.63815kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 208.68kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
