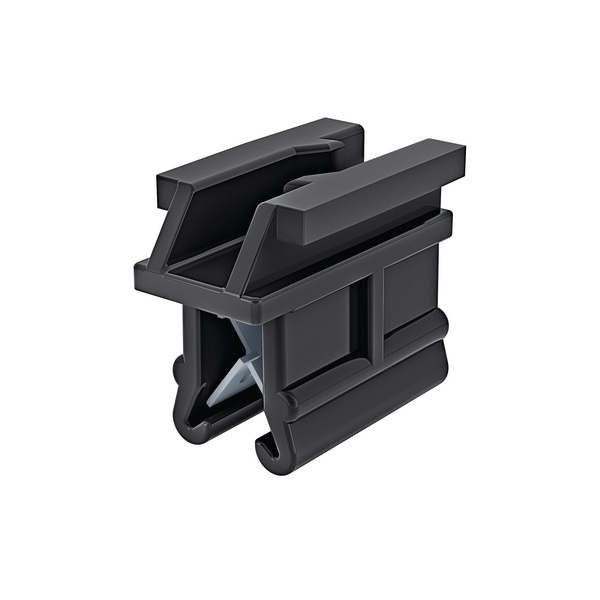

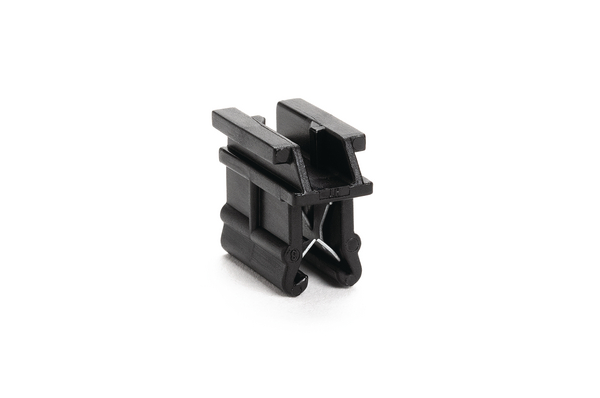

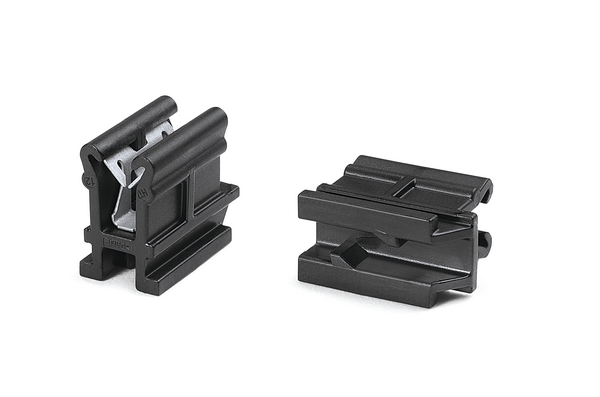

Connector clip for edge, black, 1000pcs.

Art.-No. 151-00151

| EC28-PA66HIRHS-BK

|

Connector Clips feature various attachment point configurations to accommodate the many connectors on the market.

ConnectorClip for edges 1-3 mm, parallel to the edge on top.

Simply push per hand onto a plastic edge
For edges of 1-3 mm
Integrated metal clamp holds clip firmly in place
Clamp consists of double tempered spring steel
Ideal for applications where holes or adhesives are not suitable

Add to watchlist

Request quote

Distributors near you

Downloads CAD-Download

More products in this product group:

Connector Clips for Edges

Base Data

Application	Connector Clip for edges. Ideal for applications where holes or adhesives are not suitable.
Colour	Black (BK)
Fixation Method	Edge Clip
Local order number	EC28.IB7P
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	EC28-PA66HIRHS-BK

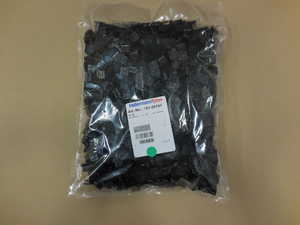

Package Content	1000pcs.
Package Content packed in	Bag
Product Group	Connector Clips for Edges
Short Description	Connector Clip 16x9.1 mm, for edges, high impact modified, heat stabilised, black
Type	EC28
Type of connection	AMP
Weight/Unit	0.001835kg

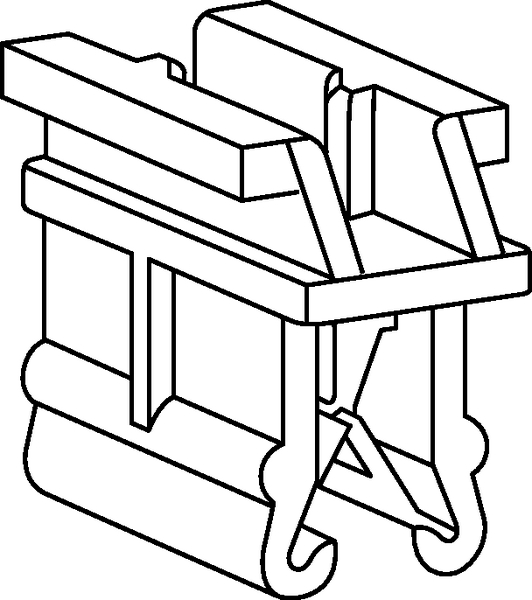

Product Dimensions

Height (H)	16.3mm
Length (L)	16.0mm
Panel Thickness	1.0 - 3.0mm
Width (W)	9.5mm
for Panel Thickness min - max	1 - 3 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant Dir. Art. 4 (2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026253800
Packaging 1 - Height (m)	0.05m
Packaging 1 - Length (m)	0.42m
Packaging 1 - Qty	1000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.006615m³
Packaging 1 - Weight (kg)	1.856815kg
Packaging 1 - Width (m)	0.315m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	8000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	15.72532kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	96000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	210.724kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
