09/08/2025

Connector clip for edge, black, 1000pcs.
Art.-No. 151-00464 | EC6mod-PA66HIRHS-BK |

Copied
EdgeClip EC6mod.
ConnectorClip for edges 1-3 mm, parallel to the edge on top.

    • Connectors are mounted simply by pushing them into retainer
    • Connector can be removed without damage
    • Fastened to an edge, the EdgeClip ensures snug fit almost all types of connector
    Add to watchlist

    Request your individual offer now

     Request quote

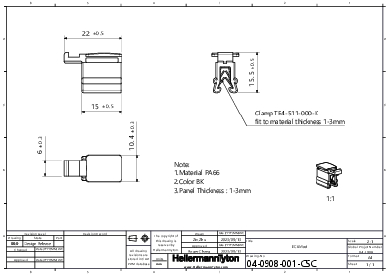

    Downloads CAD-Download
    Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
    Colour Black (BK)
    Fixation Method Edge Clip
    Local order number EC6mod-HIRHS-BK-D1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EC6mod-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in Pack
    Product Group Connector clips for edges
    Short Description Bundling Clip for Edges 1 - 3 mm, 22x10.4 mm, high impact modified, heat stabilised, black
    Type EC6mod
    UV-Stabilised No
    Weight/Unit 0.001686kg
    Height (H) 15.5mm
    Length (L) 22.0mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 10.4mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026283944
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m

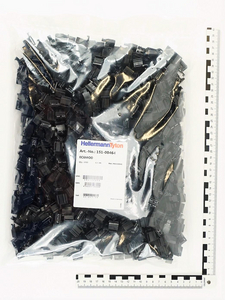

    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.707815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 17.89815kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 235.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
