04/11/2025

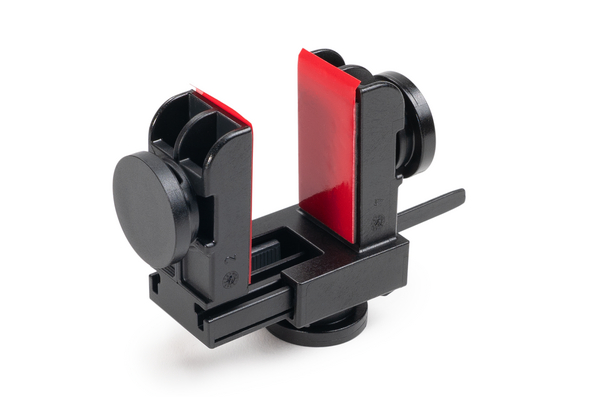

Fixing elements for edges
Art.-No. 151-04249 | FrameClampBS-SET-PA6GF15-BK |

Copied

    • For edges 6 - 17 mm
    • for cables ties up to 8.3 mm width
    • Recording suitable for Fixing SFTP
    • For multible routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

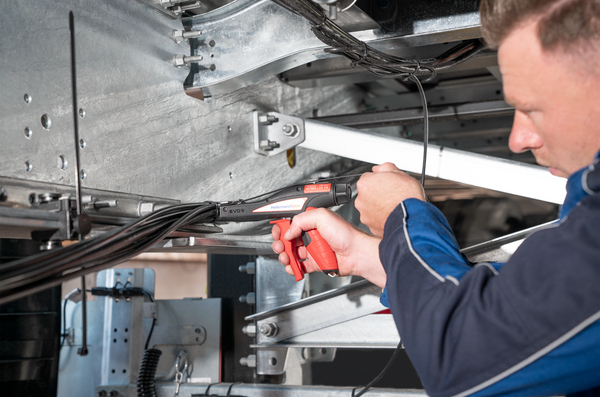

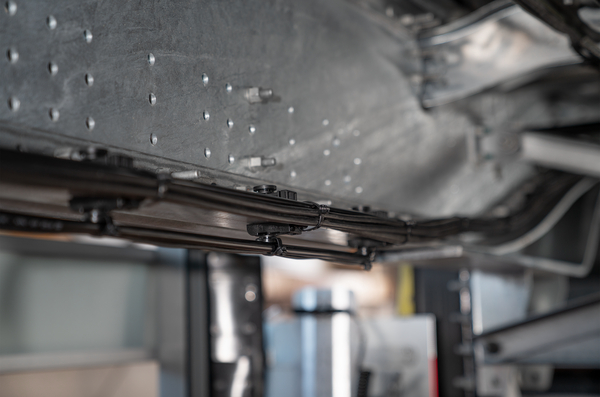

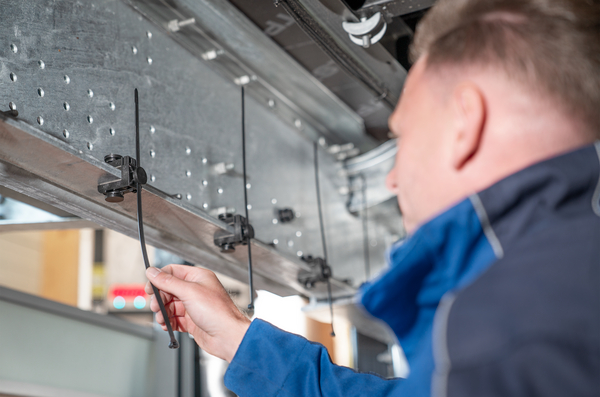

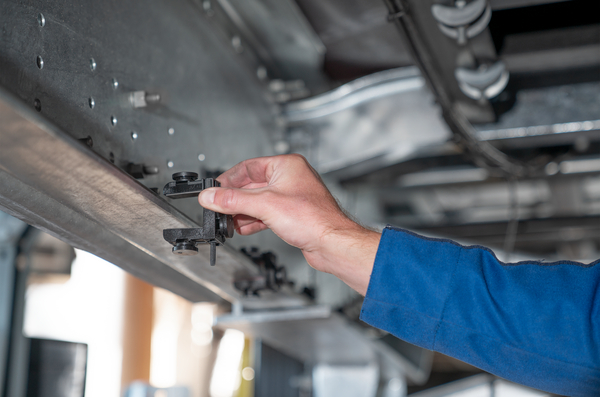

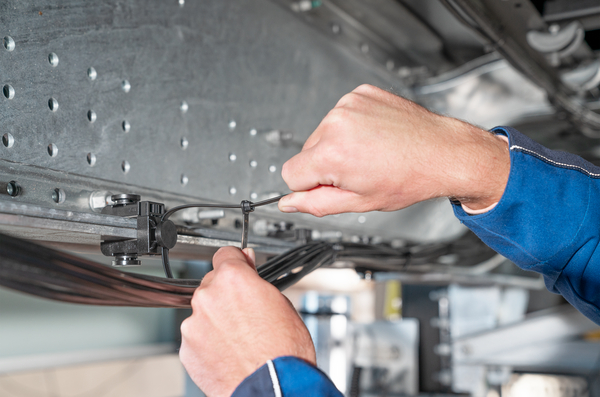

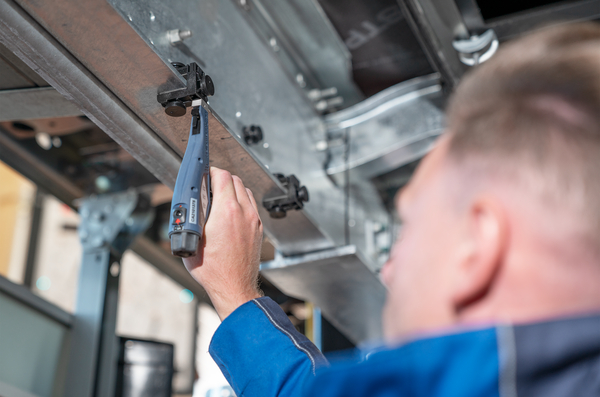

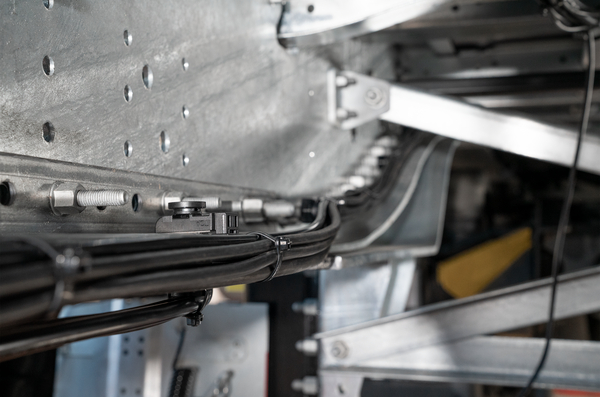

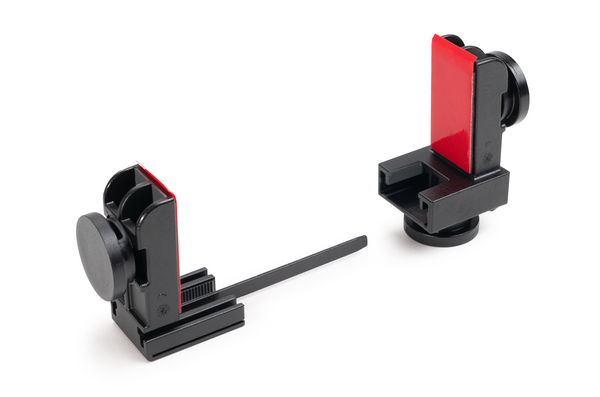

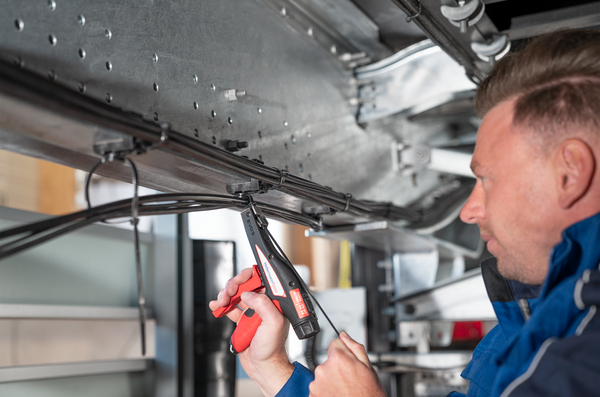

    Application Our Frame Clamp is useable for frames 6 - 17 mm. You can use this mount with cable ties or with the Fixing SFTP to route cables or harnesses. This article is perfectly made for heavy duty applications. With our EVO9 cable tie tool is the application very easy. The EVO9 tool ensures that the same tightening force is used each time the component is fitted, and the high-performance adhesive also supports the very good fit of the Frame Clamp.
    Colour Black (BK)
    Fixation Method Edge Clips without metal insert
    Key product features for multiple routing, self adhesive
    Local order number Frame Clamp BS-SET-PA6GF15-BK
    Material Polyamide 6, glass-fibre reinforced (PA6GF15)
    PART DESCRIPTION FrameClampBS-SET-PA6GF15-BK
    Package Content 280pcs.
    Package Content packed in Box
    Product Family for edges of 6.0 - 17 mm
    Product Group Fixing elements for edges
    Type FrameClampBS-SET
    Weight/Unit 0.03323kg
    Height (H) 61.6mm
    Panel Thickness 6.0 - 17.0mm
    Width (W) 28.0mm
    for Panel Thickness min - max 6 - 17 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026744643
    Packaging 1 - Type Bag
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 280
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 10.2664kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 5600
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 226.328kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
