30/10/2025

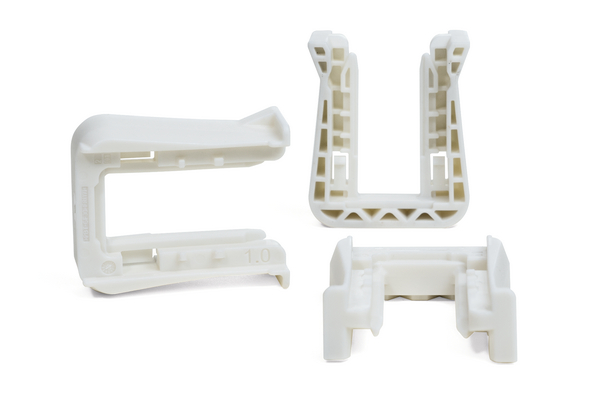

Fixing slider for connectors, T=1.0mm, natural, 1500pcs.
Art.-No. 151-02383 | FSD1.0-PBTGF30FR-NA |

Copied
Fixing Slider (V0)
Backshells and IWS Convoluted tube.
Backshells and Fixing slider applicated.
Female Connector with Backshell and convoluted tube will be attached to the panel.
The fixing slider is going to be attached to the connector.
The fixing slider is pushed onto the connector.
Fixing slider simply pushed onto the connector and hols securely on the panel.

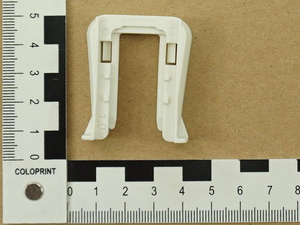

Fixing Slider Top View.
Fixing Slider Front View.

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Natural (NA)
    Local order number D Slider 1,0 V0_PBTGF30 FR17_NA_17-1487
    Material Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR)
    PART DESCRIPTION FSD1.0-PBTGF30FR-NA
    Package Content 1500pcs.

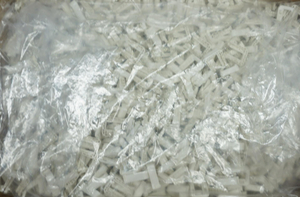

    Package Content packed in Bag
    Product Family Fixing Slider D, 1.0 mm
    CTCS-series
    Product Group Connector Accessory
    Fixing Slider, Group D
    Short Description Fixing slider for connectors PBTGF30FR NA
    Type FSD1.0
    Weight/Unit 0.00806kg
    Height (H) 14.65mm
    Length (L) 42.6mm
    Panel Thickness 1.0mm
    Width (W) 36.2mm
    Width (W2) 14.1mm
    for Panel Thickness min - max 1 - 1 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026608006
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 12.155411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 13.117411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 283.34kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
