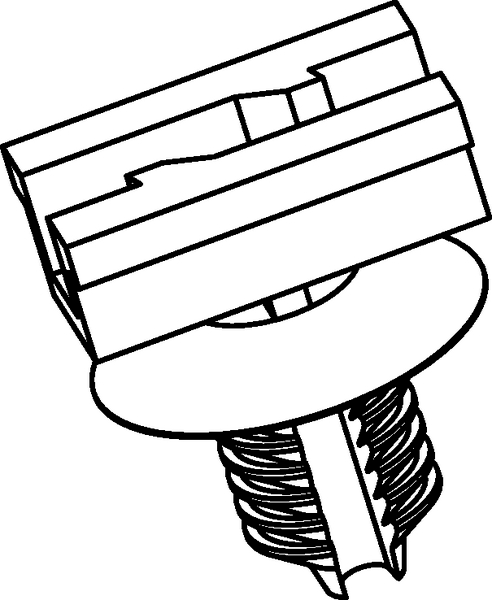

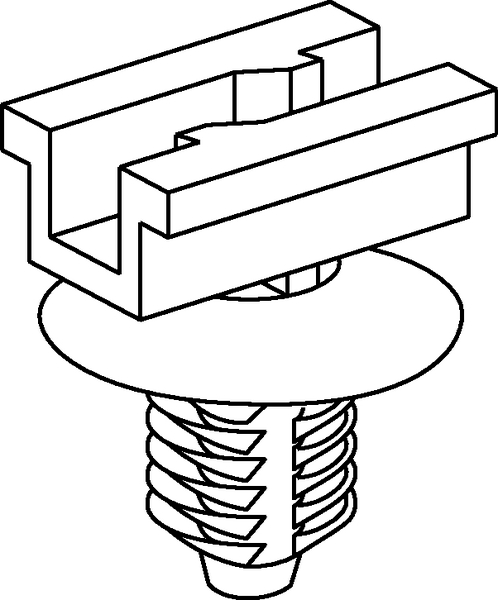

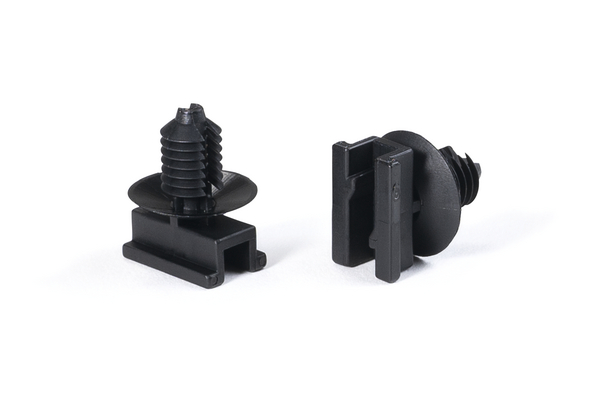

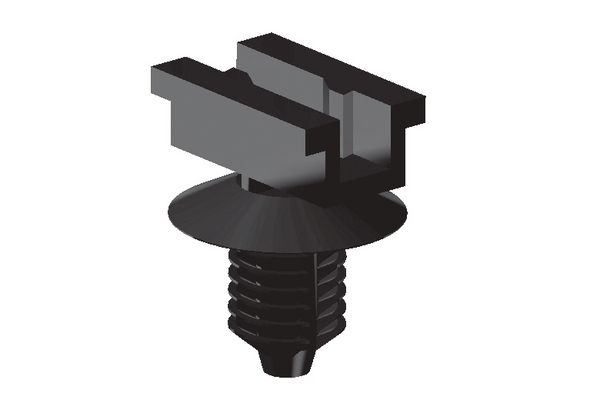

Connector clip for hole (round), black, 500pcs.
Art.-No. 155-03800 | FT6LG-AMP-PA66HIRHS-BK Details

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dirt and water gaining access
  • For twist protection: Variants with additional stick or for oval holes
Show more

Request your individual offer now

Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method Fir tree for round holes
Local order number 155-03800.HB6P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION FT6LG-AMP-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Group Connector Clips for round holes
Short Description Connector clip, high impact modified, heat stabilised, black
Type FT6LG-AMP
Type of connection AMP
Disc ∅ 16.0mm
Height (H) 20.5mm
Length (L) 16.0mm
Length of Fir Tree 11.1mm
Panel Thickness max. 0.7 - 6.0mm
Weight/Unit 0.000871kg
Width (W) 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 6 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026207711
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00227
Packaging 1 - Weight (kg) 0.449362kg
Packaging 1 - Width (m) 0.275m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 15000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.30086kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 192.66kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
