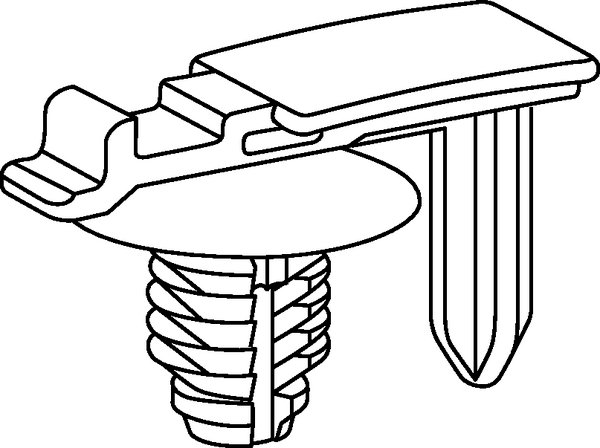

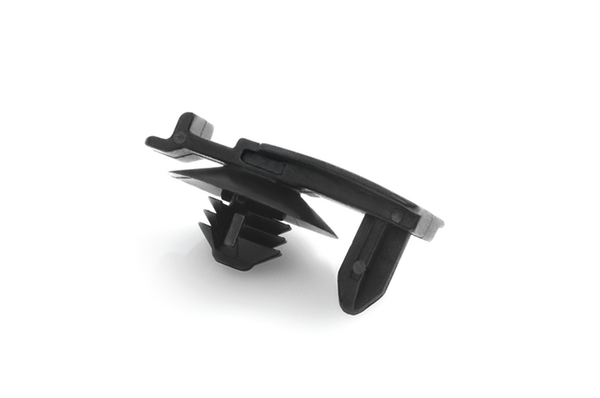

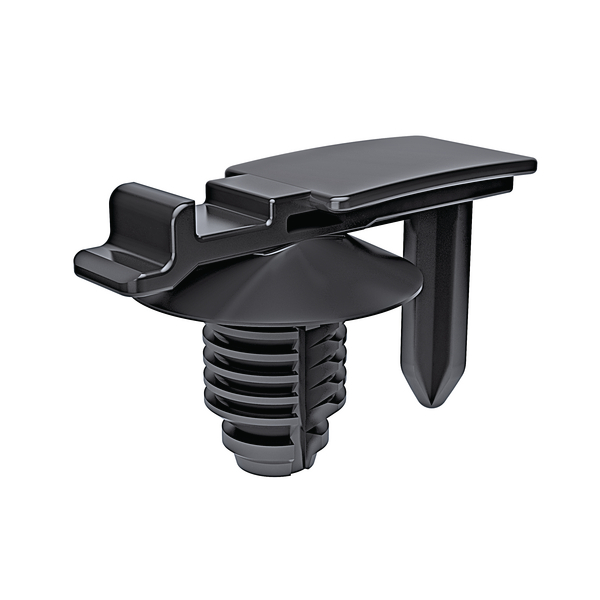

Connector clip for hole (round), black, 500pcs.
Art.-No. 155-30702 | FT6LG.YAZ.CONNECT-TS-PA66HIRHS-BK Details

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dirt and water gaining access
  • For twist protection: Variants with additional stick or for oval holes
Show more

Request your individual offer now

Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
Anti rotation (Yes / No) YES
Colour Black (BK)
Fixation Method Fir tree for round holes
Local order number FT6LGYCC.HB6P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION FT6LG.YAZ.CONNECT-TS-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Group Connector Clips for Round Holes
Short Description Connector Clip, round hole 6.4 - 7.1 mm, fir tree, high impact modified, heat stabilised, black
Type FT6LG.YAZ.CONNECT-TS

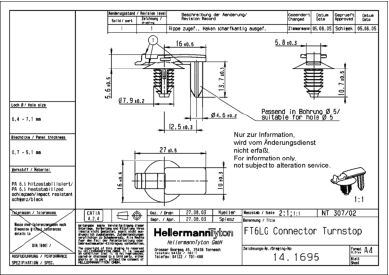

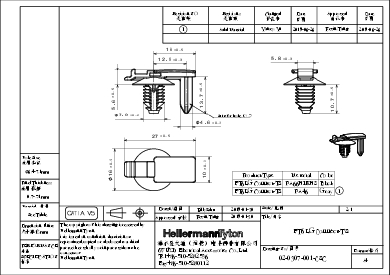

Disc ∅ 16mm
Height (H) 15.3mm
Length (L) 27.0mm
Length of Fir Tree 10.7mm
Panel Thickness max. 0.7 - 5.1mm
Weight/Unit 0.000928kg
Width (W) 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Hole ∅ (FH2) 5.0mm
for Panel Thickness min - max 0.7 - 5.1 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026217574
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.477862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 15000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 15.15586kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 202.92kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
