04/11/2024

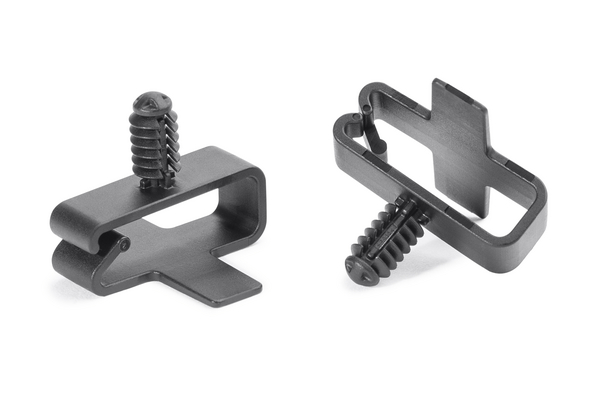

Cable clip for hole (round), ∅M6 x 1
Art.-No. 151-03535 | HC18x7M6-PA66HIRHS-BK Details

Request your individual offer now

Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour Black (BK)
Local order number HC18x7M6-PA66HIRHS-BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION HC18x7M6-PA66HIRHS-BK
Pack Cont. 1000pcs.

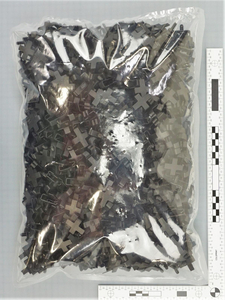

Package Content packed in Bag
Type HC18x7M6
Attach to Ø 18 x 7
Height (H) 21.9mm
Height (H2) 11.4mm
Length (L) 26.0mm
Weight/Unit 0.001141kg
Width (W) 30.0mm
for Hole ∅ (FH) M6 x 1
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026675770
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.162815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 5.25126kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 147.048kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
