MOQ is 26.000 pcs.

Cable clip, T=1.8 - 2.25mm, ∅13.0 - 15.0 mm, Dmin=4.9mm, Dmax=7.3mm
Art.-No. 151-00899 | HC2x7.3AH13-PV-PA66W-BK Details

  • Click wires into clip to be held securely in place

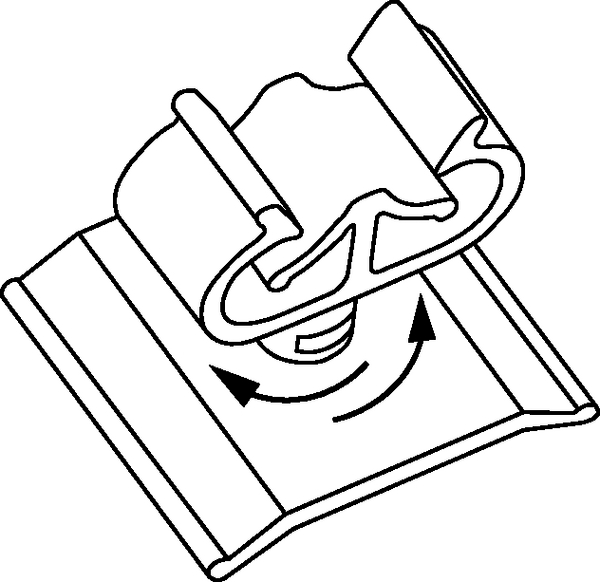

  • 360° rotatable clip, this allows movement of wires if needed
  • Just push the arrowhead into place for very quick and simple fixing

Request your individual offer now

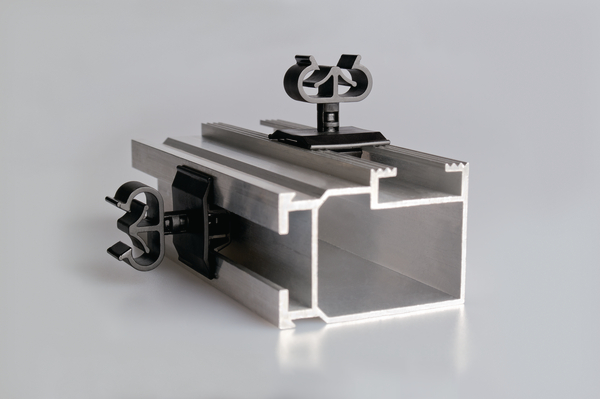

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels.
Colour Black (BK)
Internet Customer Notice MOQ is 26.000 pcs.
Local order number HC2x7.3AH13-PV_PA66W_C1
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION HC2x7.3AH13-PV-PA66W-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family Harness Clip with arrowhead
Product Group Clip with arrowhead Omega Series Clip PA66W HC2x7.3AH13-PV
Type HC2x7.3AH13-PV
Bundle Diameter max (metric) 7.3mm
Bundle ∅ 4.9-7.3mm
Bundle ∅ min. 4.9mm
Height (H2) 30.9mm
Length (L) 26.4mm
Panel Thickness max. 1.8 - 2.25mm
Weight/Unit 0.0031kg
Width (W) 24.0mm
for Hole ∅ (FH) 13.0 - 15.0 mm
for Panel Thickness min - max 1.8 - 2.3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026432410
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.323862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.12724kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 163.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
