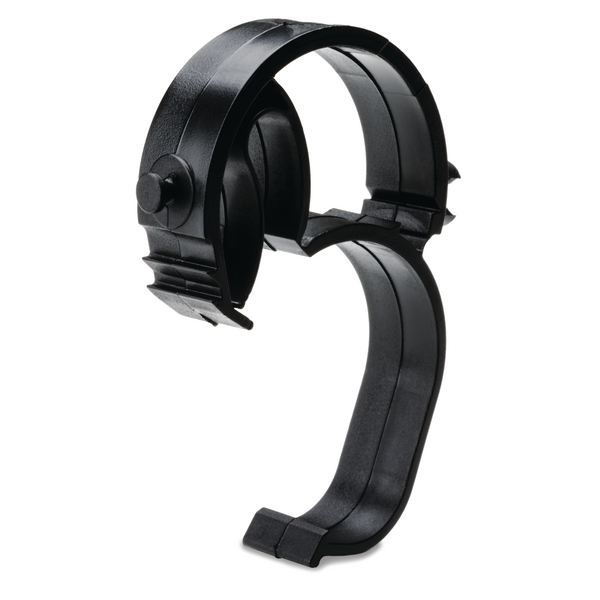

Cable clip for stud, Dmin=27.0mm, Dmax=36.0mm
Art.-No. 151-00207 | IAHC4T-PA66HIRHS-BK Details

  • Push and click closure
  • Coupling elements of the IAHC variants allow parts to interconnect
  • Clip is clicked into a specific hole
  • IAHC( )T can only be connected with another IAHC element

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, for multiple routing, vibration absorbing, releasable, removable
Local order number IAHC4T.HIRHSB7P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION IAHC4T-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in Carton
Product Family IAHC-Serie
Product Group Fixing elements for tubes and harnesses with automatic locking feature, connectable
Short Description Bundling clip 47x13.5 mm, automatic locking, heat stabilised, high impact modified, black
Type IAHC4T
Bundle Diameter max (metric) 36.0mm
Bundle ∅ 27.0-36.0mm
Bundle ∅ min. 27.0mm

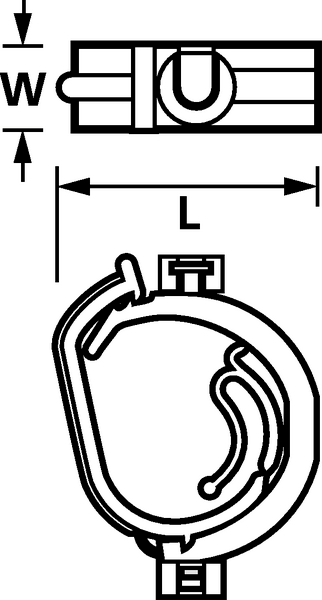

Length (L) 47.0mm
Weight/Unit 0.0078kg
Width (W) 13.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026265216
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.06
Packaging 1 - Weight (kg) 7.800001kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 8.550001kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 157.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
