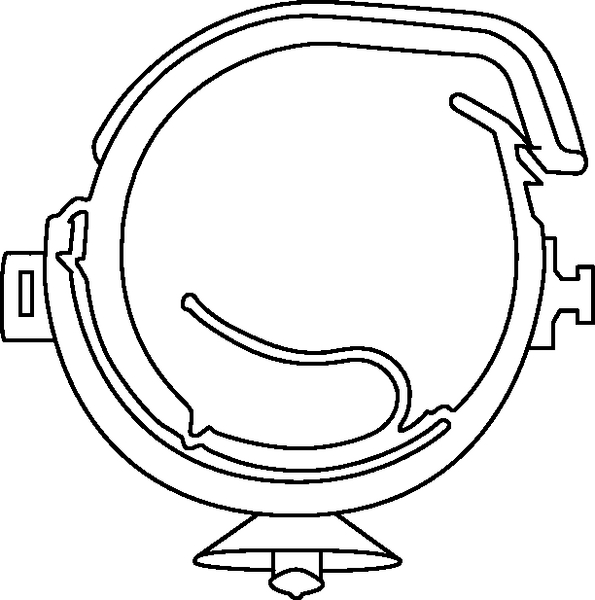

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=35.0mm, Dmax=45.0mm
Art.-No. 151-00787 | IAHC5FH-PA66HIRHS-BK Details

  • Attached to panel before cable installation
  • Simply push cable into place to activate automatic locking feature
  • Parts marked 'I' are interlockable for more installation options
  • Meaning of extensions:
  • SS & SB = for fir-tree stud Ø 5mm
  • T = for stud Ø 5mm or IAHC type of Automatic Harness Clips
Show more

Request your individual offer now

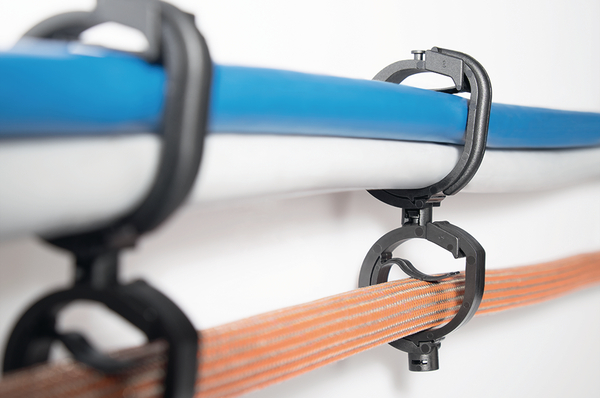

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, for multiple routing, vibration absorbing, releasable, removable, rotatable
Local order number 151-00787
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION IAHC5FH-PA66HIRHS-BK
Pack Cont. 350pcs.
Package Content packed in Box
Product Family IAHC-Series, with arrowhead
Product Group Fixing elements for tubes and harnesses with automatic locking feature, connectable
Short Description Bundling clip 61.5x13.5 mm, automatic locking, heat stabilised, high impact modified, black
Type IAHC5FH
Attach to Ø 35.0 - 45.0
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 35.0-45.0mm
Bundle ∅ min. 35.0mm
Disc ∅ 24.0mm
Length (L) 61.5mm
Length (L2) 4.1mm
Weight/Unit 0.01285kg
Width (W) 13.5mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 1.5 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026326962
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 350
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 4.550978kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 350
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.410978kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.119m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.074
Packaging 4 - Weight (kg) 129.21kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
