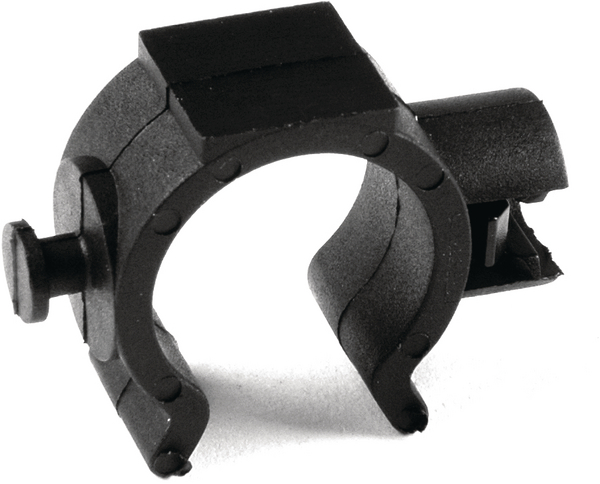

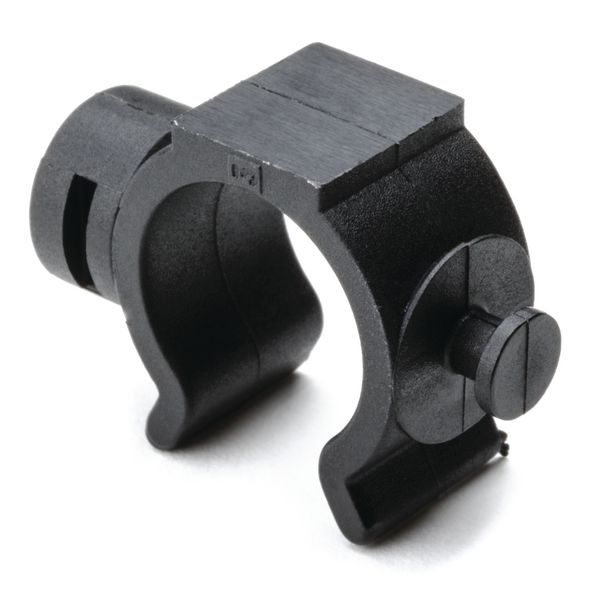

Cable clip for stud, ∅6.35 mm, Dmin=12.5mm, Dmax=13.5mm, ∅5.0 mm
Art.-No. 151-14132 | IPC13P-PA66-BK Details

  • Attach before installing pipe or hose

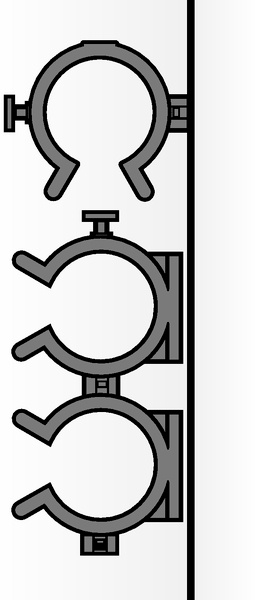

  • Parts labelled 'I' are interlockable for more installation options
  • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips

Request your individual offer now

Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
Colour Black (BK)
Key product features rotatable
Local order number IPC13P.NB3E
Material Polyamide 6.6 (PA66)
PART DESCRIPTION IPC13P-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family IPC-Series, connectabele, without footpart
Product Group Fixing Element for Tubes and Harnesses, interconnectable
Type IPC13P
Bundle Diameter max (metric) 13.5mm
Bundle ∅ 12.5-13.5mm
Bundle ∅ min. 12.5mm

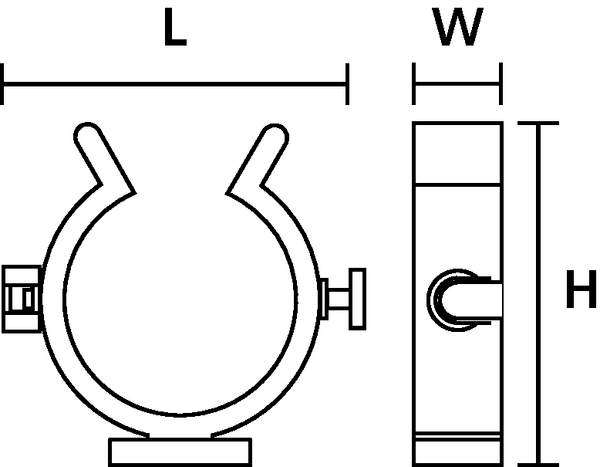

Height (H) 17.4mm
Length (L) 25.9mm
Stud ∅ 5.0 mm
Stud ∅ (imperial) 0.19"
Weight/Unit 0.00225kg
Width (W) 10.0mm
for Hole ∅ (FH) 6.35 mm
for Panel Thickness min - max 0.5 - 1.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660307997
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.203m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00077
Packaging 1 - Weight (kg) 0.225001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 18.5kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 391.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
