04/07/2025

Fixing elements for use with Paste adhesive
Art.-No. 151-04328 | IRCBPMB6CC-PA66HIRHSUV/PA66/6HIRHS-BK

Copied
  • One-piece ratchet closure allows for easy installation during pre- or final assembly
  • Easy release feature simplifies quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
  • Can even be installed onto uneven surfaces
  • Use with paste adhesive on the base to ensure a strong bond with the mounting surface
Show more

Request your individual offer now

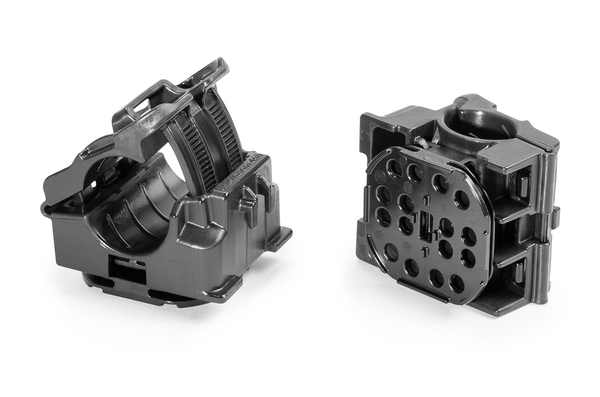

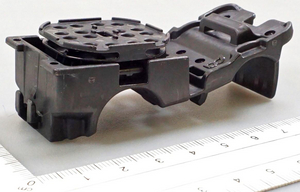

Application The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface.
Colour Black (BK)
Fixation Method Pasting / Stick
Local order number IRCBPMB6CC-PA66HIRHSUV+PA66/PA6HIRHS-BK
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
PART DESCRIPTION IRCBPMB6CC-PA66HIRHSUV/PA66/6HIRHS-BK

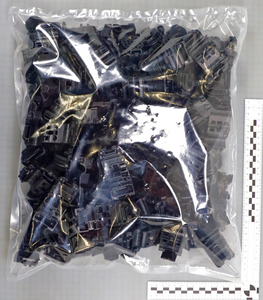

Pack Cont. 100pcs.
Package Content packed in Bag
Product Family In-Line Ratchet P-Clamp
Product Group Fixing elements for use with Paste adhesive
Type IRCBPMB6CC
UV-Stabilised Yes
Weight/Unit 0.017314kg
Bundle ⌀ 12.7-19.5mm
Bundle ⌀ max. 19.5mm
Bundle ⌀ min. 12.7mm
Height (H) 42.7mm
Length (L) 34.8mm
Width (W) 44.2mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026752136
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0159975
Packaging 1 - Weight (kg) 1.760535kg
Packaging 1 - Width (m) 0.395m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 8.00414kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 8000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 181.072kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
