Fixing elements for use with paste adhesive
Art.-No. 151-04330
| IRCCPMB6CC-PA66HIRHSUV/PA66/6HIRHS-BK
|
Copied

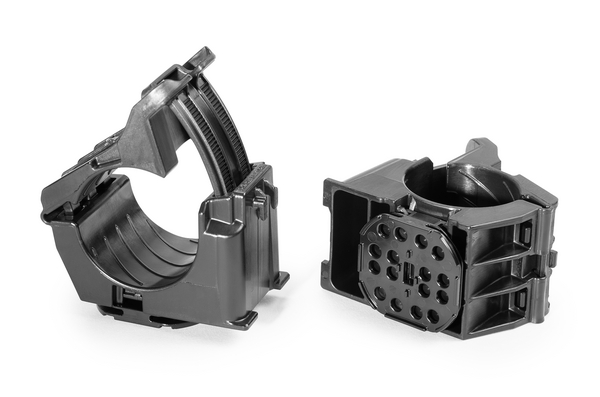

- One-piece ratchet closure allows for easy installation during pre- or final assembly
- Easy release feature simplifies quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
- Can even be installed onto uneven surfaces
- Use with paste adhesive on the base to ensure a strong bond with the mounting surface
Request your individual offer now
Request quote
More products in this product group:

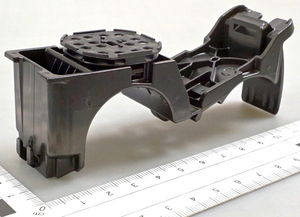

| Application | The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. |
| Colour | Black (BK) |
| Fixation Method | Pasting / Stick |
| Local order number | IRCCPMB6CC-PA66HIRHSUV+PA66/PA6HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS) |
| PART DESCRIPTION | IRCCPMB6CC-PA66HIRHSUV/PA66/6HIRHS-BK |

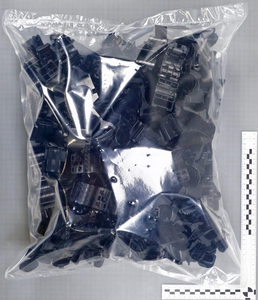

| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | In-Line Ratchet P-Clamp, C-Series |
| Product Group | Fixing elements for use with paste adhesive |
| Type | IRCCPMB6CC |
| UV-Stabilised | Yes |
| Weight/Unit | 0.029436kg |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026752150 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.545m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.03801375m³ |
| Packaging 1 - Weight (kg) | 2.987197kg |
| Packaging 1 - Width (m) | 0.465m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.781591kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3600 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 138.394kg |
| Packaging 4 - Width (m) | 0.8m |
