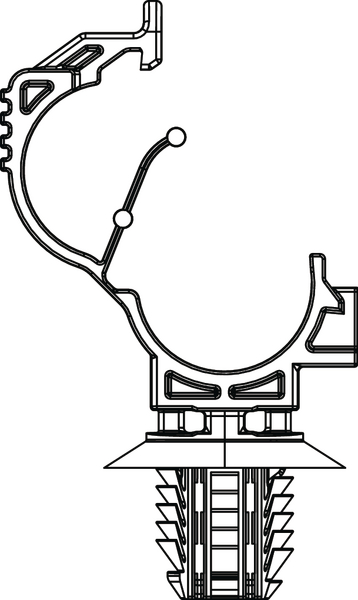

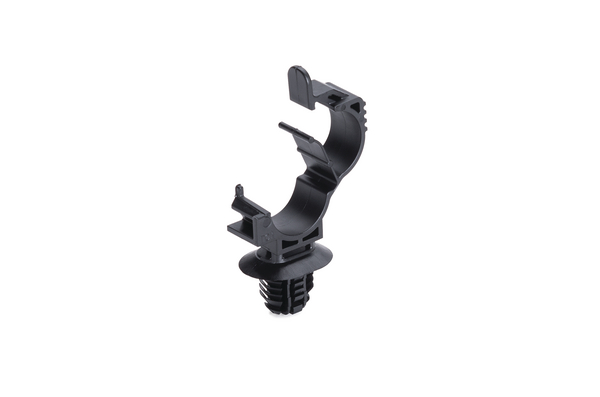

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ⌀9.0 x 12.0 mm/9.0 x 14.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom⌀=10 - 14 mm
Art.-No. 151-02501
| LOC1014FT9x12-PA66HIRHSUV-BK
|
Copied

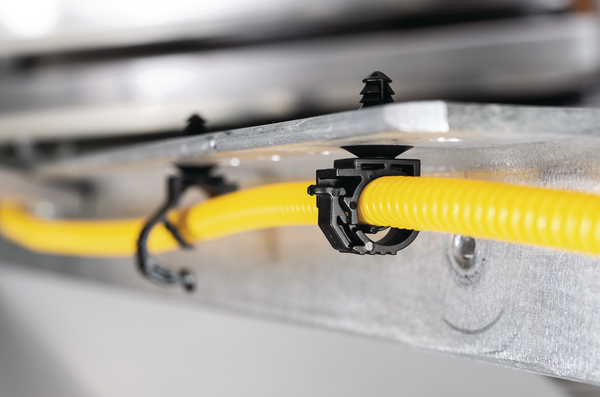

- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Request quote
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Key product features | lockable, removable |
| Local order number | 151-02501 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | LOC1014FT9x12-PA66HIRHSUV-BK |
| Package Content | 500pcs. |
| Package Content packed in | Pack |
| Type | LOC1014FT9x12 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.01kg |
| Bundle ⌀ | 10.0-14.0mm |
| Bundle ⌀ max. | 14.0mm |
| Bundle ⌀ min. | 10.0mm |
| Bundle Diameter Nom. (ND) | 10 - 14 mm |
| Disc ⌀ | 23.63mm |
| Fixing Hole Shape | Oval |

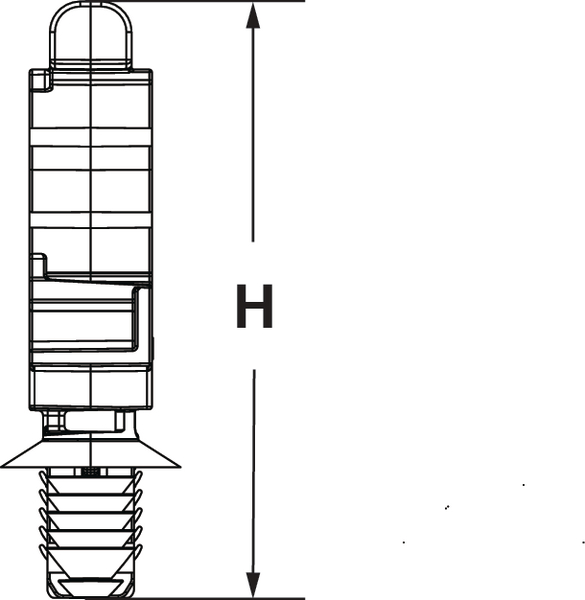

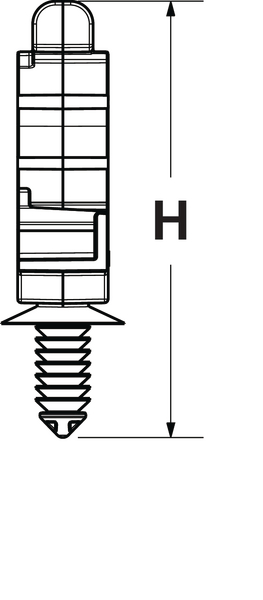

| Height (H) | 58.57mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 35.0mm |
| Panel Thickness | 0.6 - 6.75mm |

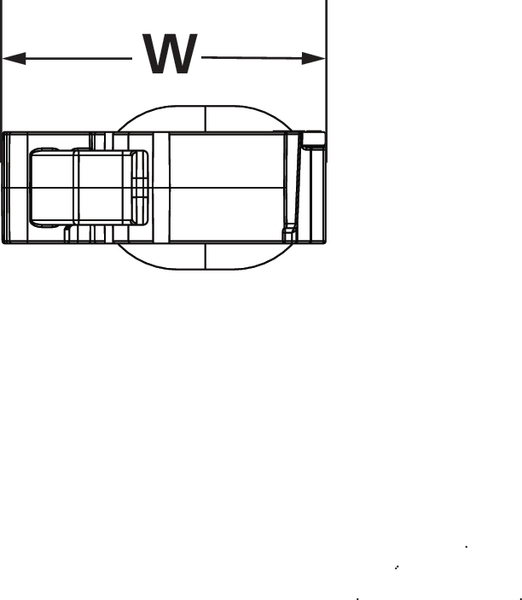

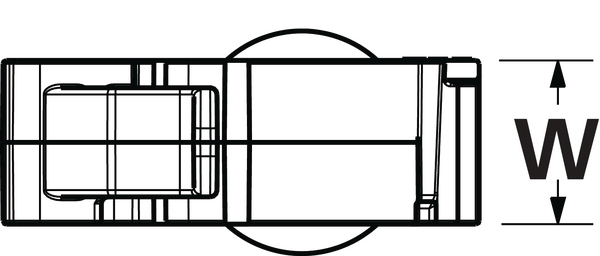

| Width (W) | 12.0mm |
| Width (W2) | 17.63mm |
| for Hole ⌀ (FH) | 9.0 x 12.0 mm, 9.0 x 14.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UL-File Number | E64139 |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026702261 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 5.000001kg |
| Packaging 3 - Height (m) | 0.1397m |
| Packaging 3 - Length (m) | 0.51276m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0223m³ |
| Packaging 3 - Weight (kg) | 5.520001kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.264m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.213m³ |
| Packaging 4 - Weight (kg) | 198.64kg |
| Packaging 4 - Width (m) | 0.8m |
