Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom⌀=14.0 mm, nom⌀2=22.0 mm

Art.-No. 156-02352

| MOC14FMOC22M-PA66HIRHSUV-BK

|

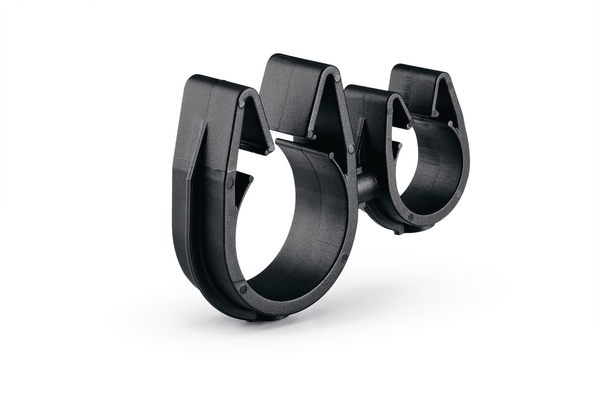

A rotatable dual routing clip that keeps two routings secured and separated.

Add to watchlist

Request quote

Distributors near you

Base Data

Colour	Black (BK)
Local order number	156-02352
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	MOC14FMOC22M-PA66HIRHSUV-BK
Package Content	1000
Package Content packed in	Pack
Type	MOC14FMOC22M
UV-Stabilised	Yes
Variant	Clip to Clip

Product Dimensions

⌀ (D2)	13.9mm
Bundle ⌀	13.0-15.8mm
Bundle ⌀ 2 max.	25.0mm
Bundle ⌀ 2 min.	20.0mm
Bundle ⌀ max.	15.8mm
Bundle ⌀ min.	13.0mm
Bundle Diameter Nom. (ND)	14.0 mm
Bundle Diameter Nom. 2 (ND2)	22.0 mm
Depth (D)	12.0mm
Diameter (D)	22.1mm
Height (H)	36.5mm
Height (H2)	36.5mm
Length (L)	55.6mm
Length (L2)	29.7mm
Width (W)	12.0mm
Width (W2)	10.0mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026586212
Packaging 1 - Qty	1000
Packaging 1 - Type	Bag
Packaging 1 - Weight (kg)	205.12kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
