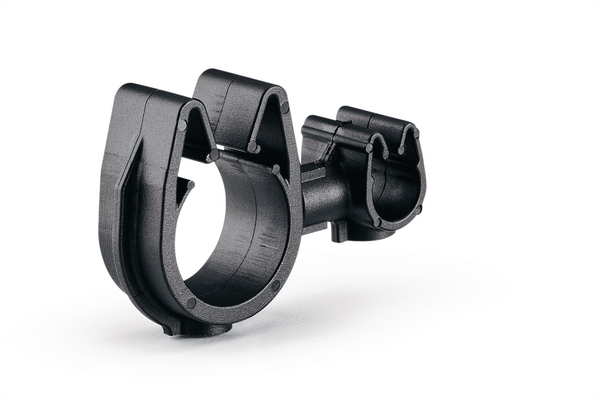

Cable clip with pipe/tube holder, Dmin=4.0mm, Dmax=5.5mm, nom⌀=5.0 mm, nom⌀2=14.0 mm

Art.-No. 156-02287

| MOC5FMOC14M-PA66HIRHSUV-BK

|

A rotatable dual routing clip that keeps two routings secured and separated.

Add to watchlist

Request quote

Distributors near you

Base Data

Colour	Black (BK)
Local order number	156-02287
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	MOC5FMOC14M-PA66HIRHSUV-BK
Package Content	2000
Package Content packed in	Pack
Type	MOC5FMOC14M
UV-Stabilised	Yes
Variant	Clip to Clip

Product Dimensions

⌀ (D2)	4.7mm
Bundle ⌀	4.0-5.5mm
Bundle ⌀ 2 max.	15.8mm
Bundle ⌀ 2 min.	13.0mm
Bundle ⌀ max.	5.5mm
Bundle ⌀ min.	4.0mm
Bundle Diameter Nom. (ND)	5.0 mm
Bundle Diameter Nom. 2 (ND2)	14.0 mm
Depth (D)	10.0mm
Diameter (D)	13.9mm
Height (H)	23.8mm
Height (H2)	23.8mm
Length (L)	35.7mm
Length (L2)	20.4mm
Width (W)	10.0mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026663227
Packaging 1 - Qty	2000
Packaging 1 - Type	Pack
Packaging 1 - Weight (kg)	202.07kg

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
