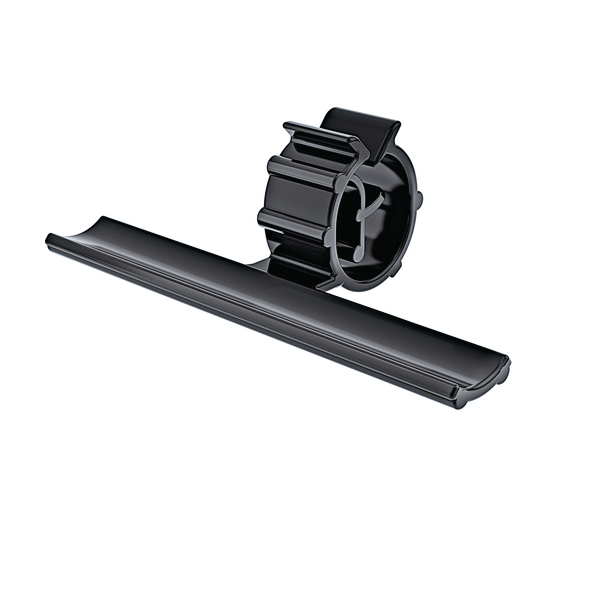

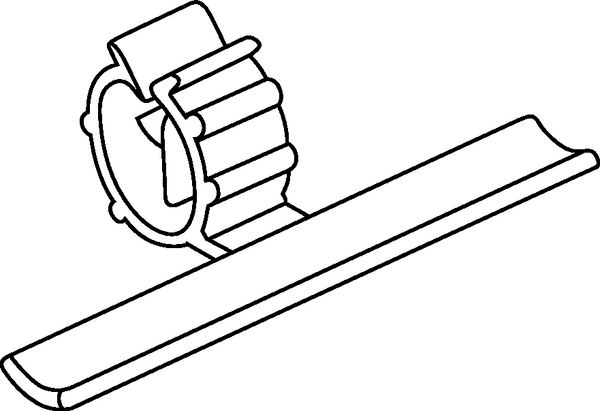

Bundling clip with pipe/tube holder, L=60.4mm, SO=15.0mm, black, 500pcs.
Art.-No. 151-00447 | OCTC1-PA66HIRHS-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Bundling Clip
Local order number OCTC1-HIRHS-BK-D1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION OCTC1-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Group Bundling Clips with Harness Clip
Short Description Bundling Clip, hose clip (open), high impact modified, heat stabilised, black
Type OCTC1
Attach to Ø 6.0 - 12.0 mm
Bundle ∅ 6mm
Bundle ∅ min. 6mm
Bundling Bar Length 60.4mm
Height (H) 19.5mm
Length (L) 60.4mm
Offset Length 15.0mm
Weight/Unit 0.00215kg
Width (W) 28.90mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026269801
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 1.128478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.420868kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 169.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
