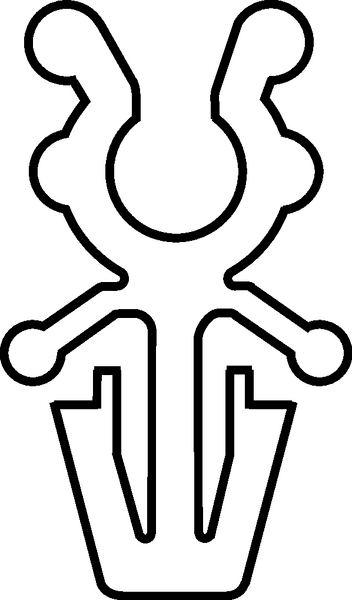

Cable clip for hole (round), ⌀5.4 mm, Dmax=5.0mm
Art.-No. 151-14900 | PC5LAH-PA66-BK

Copied
  • Fixing elements with fir tree or arrow head

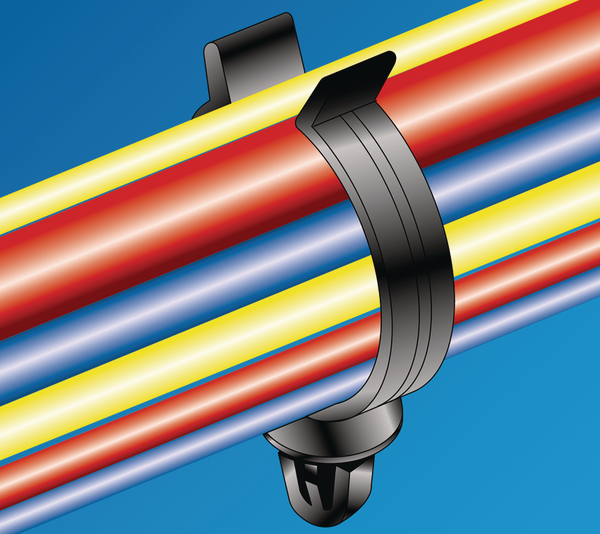

    Simply clip on a wire or hose
    Clips to be attached into bore hole
    Bundles can be released at any time

Request your individual offer now

Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible.
Colour Black (BK)
Fixation Method arrowhead
Local order number PC5LAH.NB6P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION PC5LAH-PA66-BK
Package Content 500pcs.
Package Content packed in Bag
Product Group Fixing elements for tubes and harnesses
Type PC5LAH
Weight/Unit 0.000507kg
Bundle ⌀ 5.0mm
Bundle ⌀ max. 5.0mm
Height (H) 12.0mm
Height (H2) 5.9mm
Length (L) 10.0mm
Nominal ⌀ 5.0mm
Width (W) 8.0mm
for Hole ⌀ (FH) 5.4 mm
for Panel Thickness min - max 0.7 - 1.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660313691
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00160875
Packaging 1 - Weight (kg) 0.253501kg
Packaging 1 - Width (m) 0.195m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 20000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.87004kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 238.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162906
