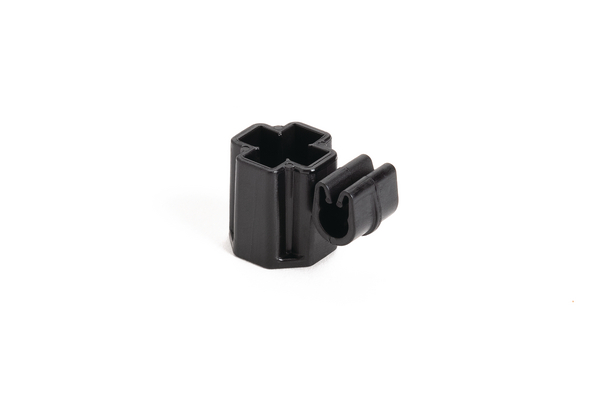

Cable clip for stud, T=M6mm, ⌀M6, ⌀M6

Art.-No. 133-03179

| PC5SM6-PA66HIRHSUV-BK

|

Pipe clip secures routing to panel using a stud mount suited for a 5 or 6mm stud or bolt.

Fixing clip PC5SM6 for weld studs with additional pipe clip.

Stud fixing and retainer coming as one-piece part
Easy to install manually: just push onto stud and click bundle into retainer
Allows for post installation of cables
In case of maintenance replacement of bundle possible

Add to watchlist

Request quote

Distributors near you

Downloads

More products in this product group:

Fixing elements for weld studs, cloverleaf design

Base Data

Application	Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
Colour	Black (BK)
Fixation Method	Stud Mount
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	1
PART DESCRIPTION	PC5SM6-PA66HIRHSUV-BK
Package Content	2000pcs.
Package Content packed in	Pack
Product Family	for cable routing alongside the stud
Product Group	Fixing elements for weld studs, cloverleaf design
Type	PC5SM6
UV-Stabilised	Yes

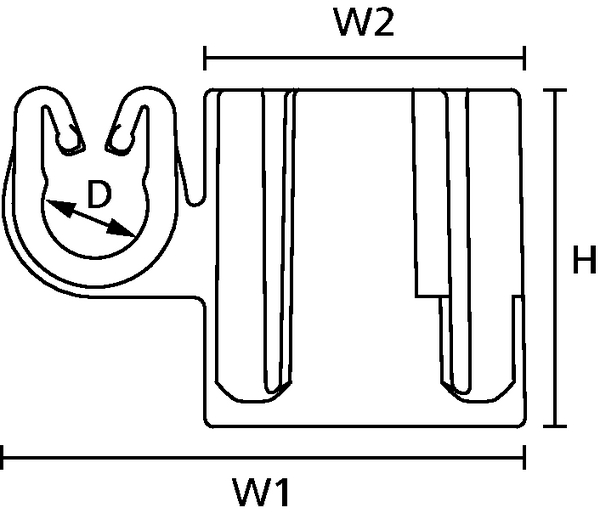

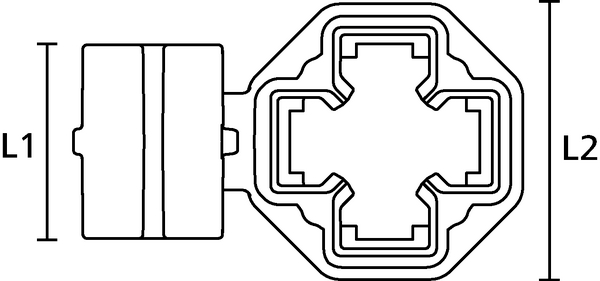

Product Dimensions

Height (H)	15.1mm
Length (L)	10.0mm
Nominal ⌀	4.7mm
Panel Thickness	M6mm
Stud ⌀	M6
Width (W)	14.73mm
for Hole ⌀ (FH)	M6

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026588780
Packaging 1 - Qty	5000
Packaging 1 - Type	Pack
Packaging 3 - Height (m)	0.1730375m
Packaging 3 - Length (m)	0.57785m
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0349m³
Packaging 3 - Width (m)	0.34925m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
