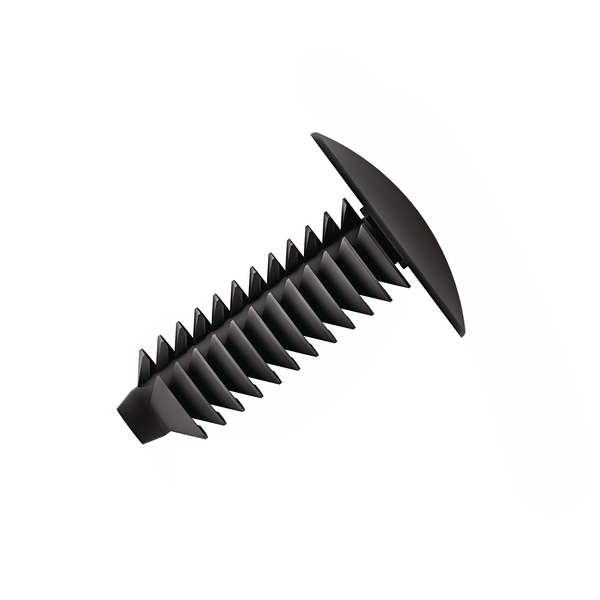

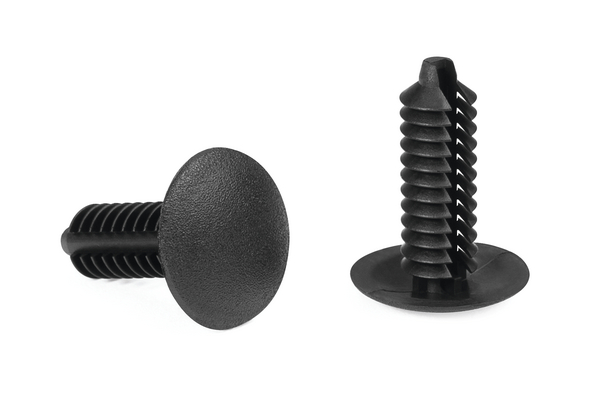

Blind plug, ∅6.5 - 7.0 mm, black, 1000pcs.
Art.-No. 241-00002 | PLUGFT6XL-PA66HIR-BK Details

  • Easy assembly without the need of a tool
  • Disc of the part covers the hole and minimises ingress of dust, dirt and water
  • Standard geometry for example fir tree or arrowhead

Request your individual offer now

Application Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels particularly where holes have to be covered and tubes must be guided securely. Parts are even used for optical reasons.
Colour Black (BK)
Local order number 17322
Material Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION PLUGFT6XL-PA66HIR-BK
Pack Cont. 1000pcs.
Package Content packed in Carton
Product Group Blind Plugs
Short Description Blind plug, high impact, black
Type PLUGFT6XL
Weight/Unit 0.000748kg
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 18 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026334820
Packaging 2 - Height (m) 0.09m
Packaging 2 - Length (m) 0.3m
Packaging 2 - Type Box
Packaging 2 - Volume (m³) 0.0054
Packaging 2 - Width (m) 0.2m
Packaging 3 - Height (m) 0.09m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0054
Packaging 3 - Weight (kg) 0.828kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 140.232kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
