Accessory, Ratchet Clamps, black, 100pc. (RCTT)
Art.-No. 151-01529
| RCTT-PA66HIRHSUV-BK
Copied

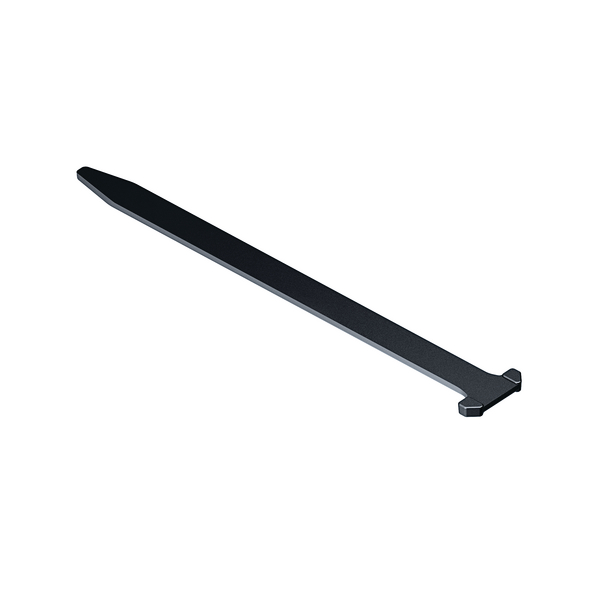

- For pre-determined clamp pressure, a tension tab is available

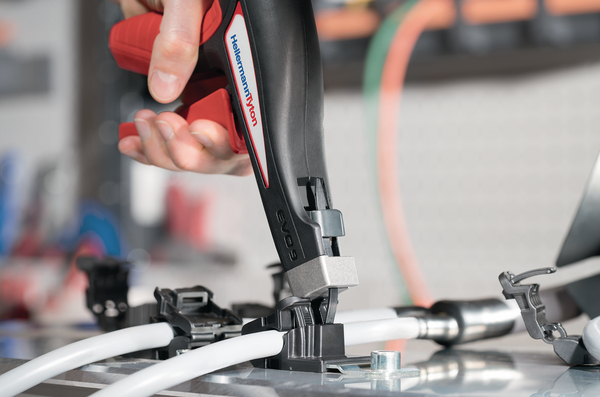

- Tension tab for use with our EVO-Series hand tools
- Built-in channel on Ratchet P-Clamp makes using Tension Tabs quick and easy
Request your individual offer now
Request quote
More products in this product group:
| Application | The Tension Tab enables installers to apply a specific clamp tension when used with manual processing Tool of the EVO Series hand tools. |
| Colour | Black (BK) |
| Fixation Method | Others |
| Local order number | 151-01529 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | RCTT-PA66HIRHSUV-BK |
| Package Content | 100pc. |
| Package Content packed in | Pack |
| Product Family | Tension tab |
| Product Group | Ratchet P-Clamp accessories |
| Short Description | Tension tab without serration, high impact modified, heat and UV stabilised, black |
| Type | RCTT |
| UV-Stabilised | Yes |
| Variant | Not Serrated |
| Weight/Unit | 0.000449kg |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026544991 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.295m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0010738m³ |
| Packaging 1 - Weight (kg) | 0.0529kg |
| Packaging 1 - Width (m) | 0.182m |
| Packaging 3 - Height (m) | 0.1698625m |
| Packaging 3 - Length (m) | 0.20955m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0057m³ |
| Packaging 3 - Weight (kg) | 0.2687kg |
| Packaging 3 - Width (m) | 0.15875m |
| Packaging 4 - Height (m) | 1.222m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 52500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.173m³ |
| Packaging 4 - Weight (kg) | 69.023kg |
| Packaging 4 - Width (m) | 0.8m |
