Cable clip, T=0.7 - 6.35mm, ∅6.6 mm, Dmin=6.0mm, Dmax=7.6mm
Art.-No. 151-00927 | SC6.6-PA66HIRHSUV-BK Details

  • Pre-drilled holes allows for Easy installation by hand.
  • Cable can be removed and reinstalled without removing the clip, providing multiple use options.
  • Made of PA66HIRHSUV material for withstanding extreme conditions

Request your individual offer now

Colour Black (BK)

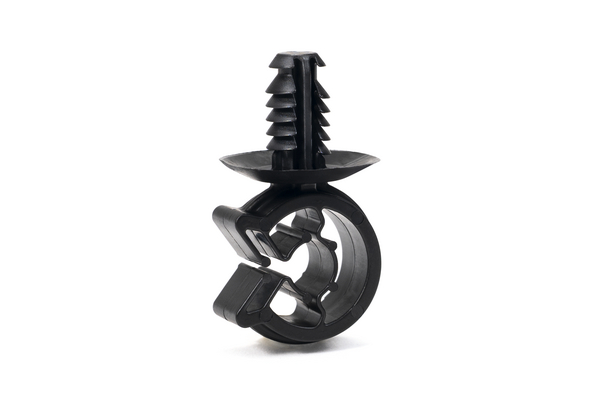

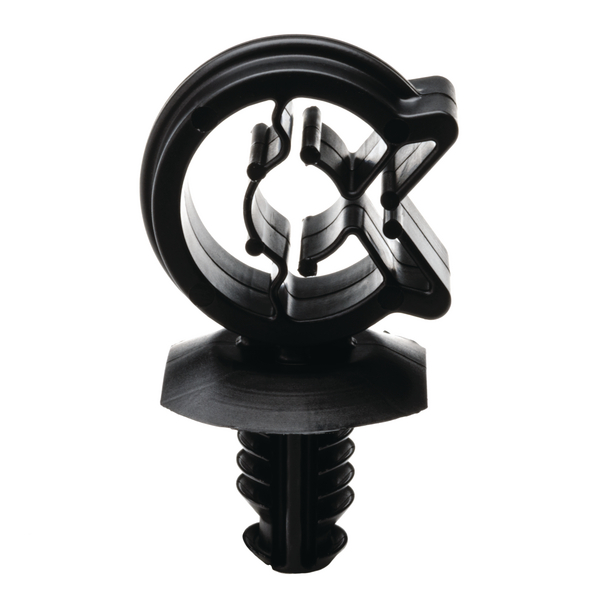

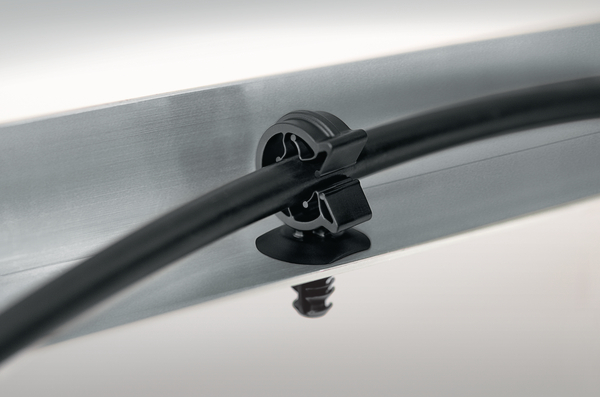

Description The C Clip with fir tree mount is ideal for panels with pre-drilled holes. Easy installation by hand eliminates the need for any tools. Once installed, the cable simply snaps into the clip. The cable can be removed and reinstalled without removing the clip. Made from PA66HIRHSUV material, the clip offers increased flexibility along with heat resistance and UV stability.
Fixation Method Fir Tree
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SC6.6-PA66HIRHSUV-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family With Fir Tree, Solar Cable (SC) Series
Product Group Clip with fir tree Solar Cable Series - SC6.6
Short Description Solar Clip black
Type SC6.6
Attach to Ø 6.0 - 7.6
Bundle Diameter max (metric) 7.6mm
Bundle ∅ 6.0-7.6mm
Bundle ∅ min. 6.0mm
Disc ∅ 18.55mm

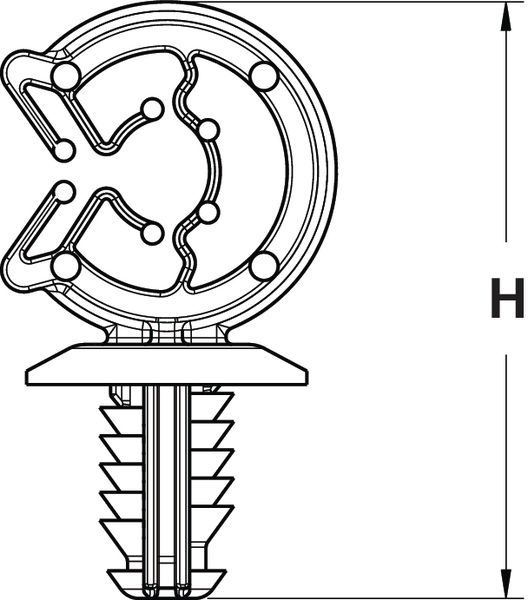

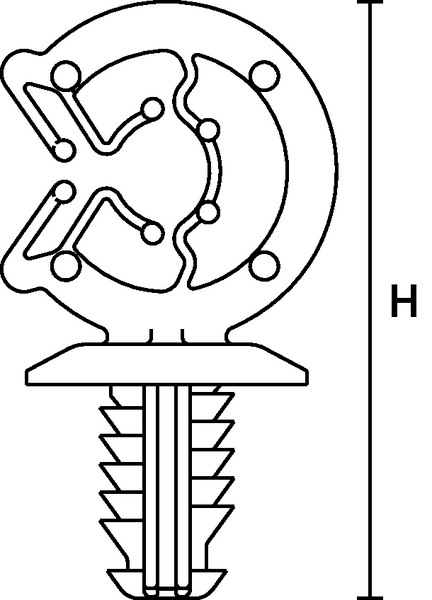

Height (H) 33.43mm
Panel Thickness max. 0.7 - 6.35mm
Weight/Unit 0.00165kg
Width (W) 18.26mm
Width (W2) 8.0mm
for Hole ∅ (FH) 6.6 mm
for Panel Thickness min - max 0.7 - 6.4 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026436012
Packaging 1 - Height (m) 0.0762m
Packaging 1 - Length (m) 0.127m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00221
Packaging 1 - Weight (kg) 0.165001kg
Packaging 1 - Width (m) 0.2286m
Packaging 3 - Height (m) 0.168275m
Packaging 3 - Length (m) 0.26035m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0092
Packaging 3 - Weight (kg) 1.83001kg
Packaging 3 - Width (m) 0.20955m
Packaging 4 - Height (m) 1.32m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 105000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.267
Packaging 4 - Weight (kg) 213.15kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
