Bundling clip for hole (round), L=55.0mm, SO=13.0mm, black, 500pcs.
Art.-No. 151-00074 | SOC5FT6LG-PA66HIRHS-BK Details

Package size

Request your individual offer now

Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method Fir Tree
Local order number SOC5FT6LG.HB6P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION SOC5FT6LG-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family SOC5FT6LG for distance routing 13.0 mm
Product Group Bundling Clips with Fir Tree, for Distance Routing
Short Description Bundling Clip, round hole 6.5 - 7.0 mm;6.1 - 6.6 mm (hexagonal), fir tree, offset, high impact modified, heat stabilised, black
Type SOC5FT6LG
Wings on clip base (Yes / No) YES

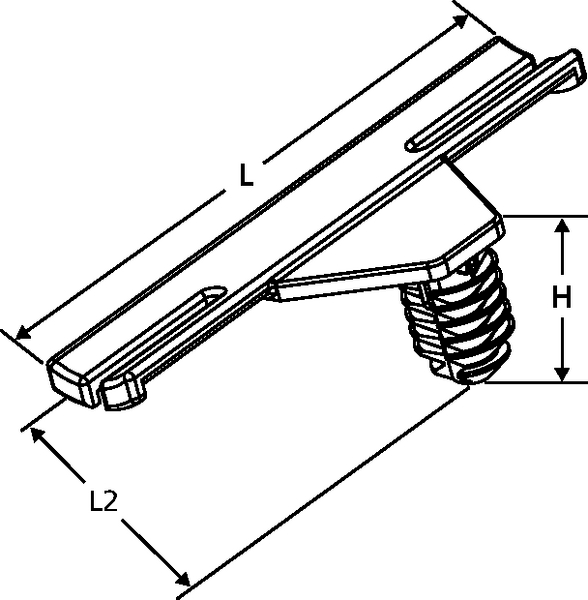

Bundling Bar Length 55.0mm
Height (H) 12.5mm
Length (L) 55.0mm
Length (L2) 21.0mm
Offset Length 13.0mm
Panel Thickness max. 0.7 - 5.1mm
Weight/Unit 0.001334kg
Width (W2) 13.0mm
for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 5.1 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026251875
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.688815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.5963kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 196.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121717
