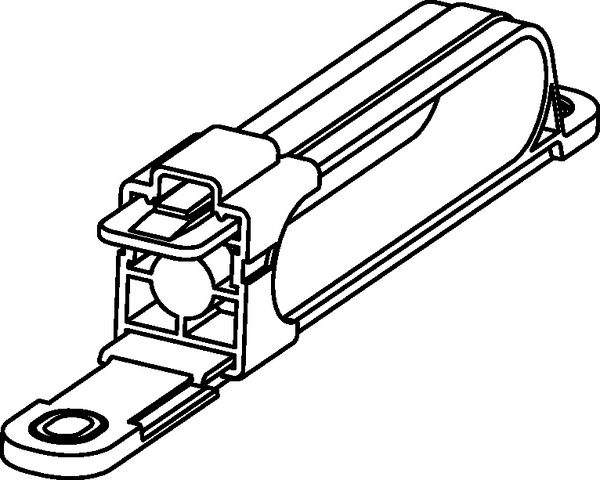

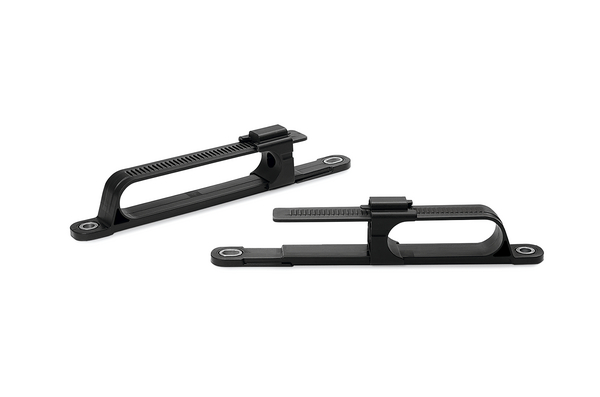

Cable clip for screw fixation/with pipe/tube holder, Dmax=29.0mm
Art.-No. 156-02742 | SRC150M8-PA6GF30-BK Details

  • Cables and tubes can be bundled in parallel
  • Can be opened and closed with one hand and without tools due to lever on the sliding element
  • Re-openable, thus cables can be exchanged and added when required
  • Can be screwed vertically or horizontally depending on the equipment
  • After being screwed the locking cover/ lever is pushed onto the cable and thus allows a flexible accommodation of the cables with regards to the number of cables to be routed
Show more

Request your individual offer now

Application The Screwed Ratchet Clamp can be used wherever cables are to be laid in parallel. The clamp can be mounted both horizontally and vertically. In the second assembly step the cables can be inserted. The component can be used to fix various cables or cable combinations as it can be filled in a range from 25 to 150 mm.
Colour Black (BK)
Fixation Method Pipe Clip
Key product features vibration absorbing, for multiple routing
Local order number SRC150M8-PA6GF30-BK
Material Polyamide 6, glass-fibre reinforced (PA6GF30)
Mounting Screw Type M8 Screw
PART DESCRIPTION SRC150M8-PA6GF30-BK
Pack Cont. 150
Package Content packed in Bag
Product Family for multiple parallel cable routing
Product Group Screwed Ratchet Clamp
Short Description Harness clip (M8) 250x26 mm, screw, closeable, PA6GF30%, black
Type SRC150M8
Bundle Diameter max (metric) 29.0mm
Bundle ∅ 29.0mm

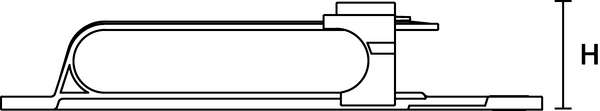

Height (H) 49.4mm
Height (H2) 29.4mm

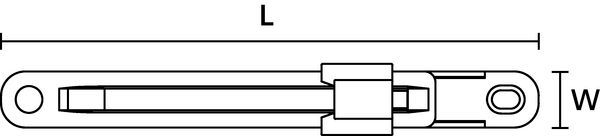

Length (L) 250.0mm
Weight/Unit 0.077054kg
Width (W) 26.0mm
CAS Number 7439-92-1
Critical Substance Lead in Steel alloy 0.1 0.35 %
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +100 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026624990
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 150
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.3781kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 169.537kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
