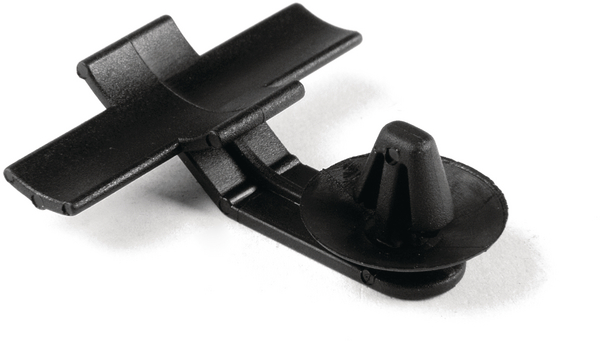

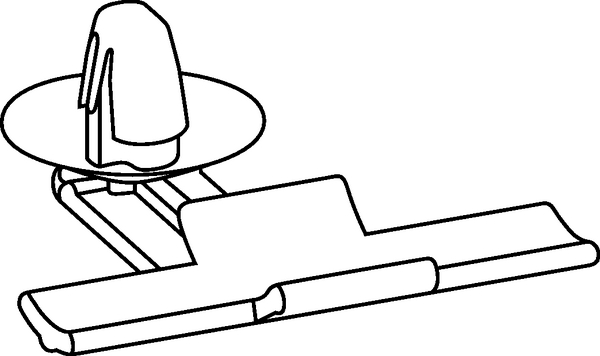

Bundling clip for hole (round), L=40.0mm, SO=25.0mm, black, 500pcs.
Art.-No. 155-01600
| STAND-OFF-CLIP-2-PA66HIRHS-BK
|
Copied
- Simple installation
- tool-free
- Is attached to the bundle element with cable ties or adhesive tap
Request quote

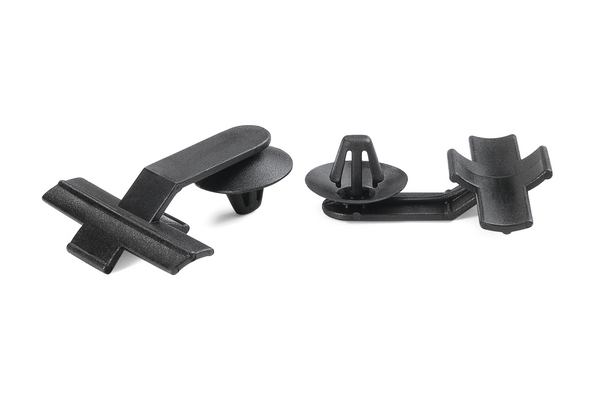

More products in this product group:

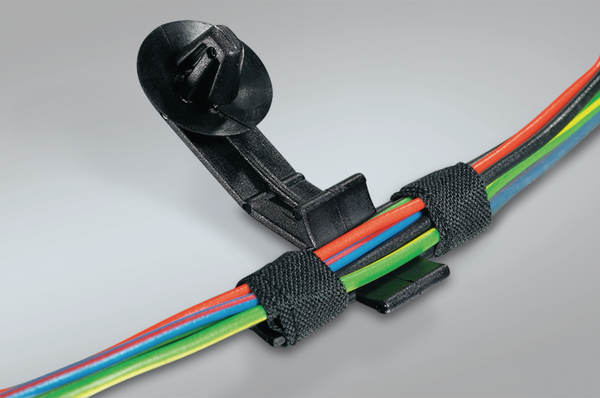

| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Local order number | 155-01600.NB6P |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | STAND-OFF-CLIP-2-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | Pack |
| Product Family | SOC2 for distance routing 25.0 mm |
| Product Group | Bundling Clips with Arrowhead for Distance Routing |
| Short Description | Bundling Clip 40 mm, with arrowhead for distance routing, high impact, heat stabilised, black |
| Type | STAND-OFF-CLIP-2 |
| UV-Stabilised | No |
| Weight/Unit | 0.001699kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026209470 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00525m³ |
| Packaging 1 - Weight (kg) | 0.871315kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 11.32658kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 157.948kg |
| Packaging 4 - Width (m) | 0.8m |
