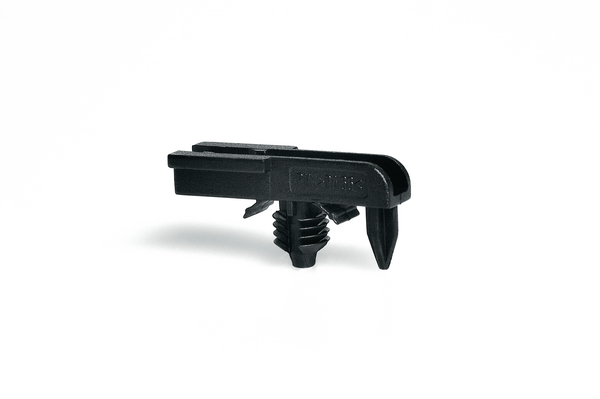

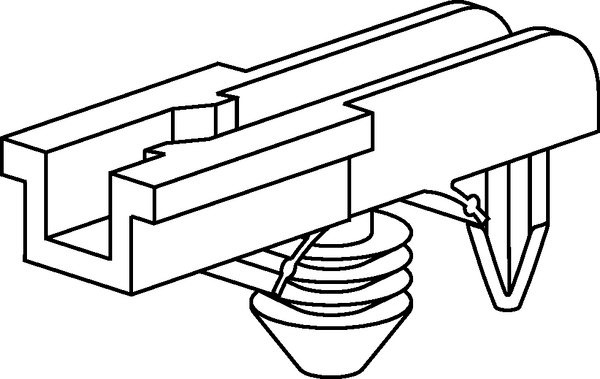

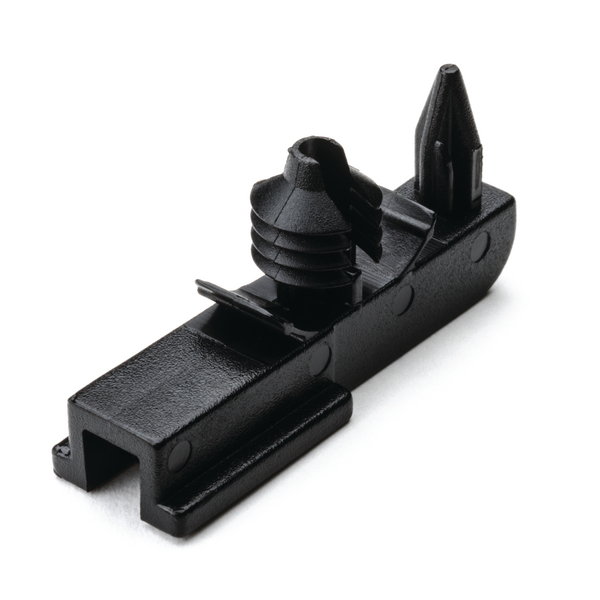

Connector clip for hole (round), black, 1000pcs.
Art.-No. 155-36002 | STECKERHALTER SITZ-PA66HIRHS-BK Details

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dirt and water gaining access
  • For twist protection: Variants with additional stick or for oval holes
Show more

Request your individual offer now

Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
Colour Black (BK)
Fixation Method Fir tree for round holes
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION STECKERHALTER SITZ-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in pcs.
Product Group Connector Clips for round holes
Short Description Connector Clip, round hole 6.5 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
Type STECKERHALTER SITZ
Type of connection AMP
Height (H) 15.2mm
Length (L) 33.5mm
Panel Thickness max. 0.6 - 3.0mm
Weight/Unit 0.001217kg
Width (W) 10.3mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Hole ∅ (FH2) 5.0mm
for Panel Thickness min - max 0.6 - 3 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026219134
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.28m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00511
Packaging 1 - Weight (kg) 1.238993kg
Packaging 1 - Width (m) 0.365m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.561944kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 232.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
