Scroll down for alternative automation-ready products.

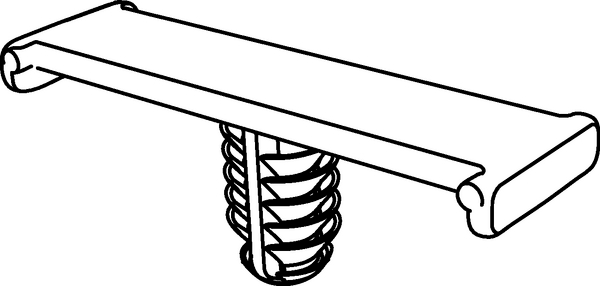

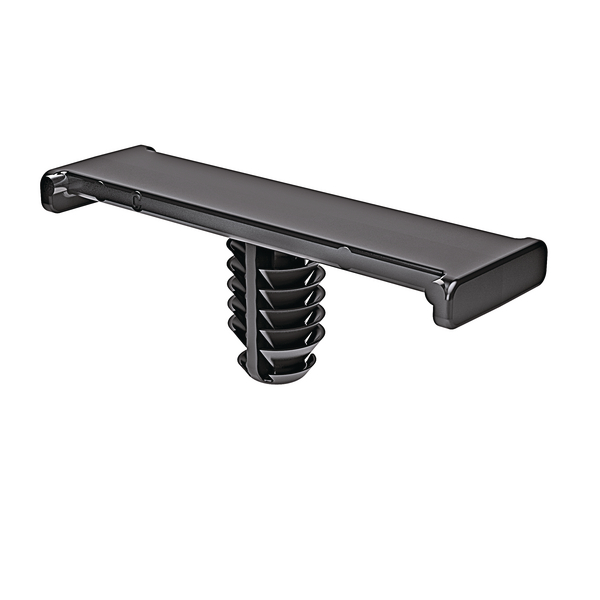

Bundling clip for hole (round), L=39.3mm, black, 10000pcs.
Art.-No. 151-00663
| TC6FT6-PA66HIRHSUV-BK
|
Copied
- Staggered fir tree branch design provides low insertion forces and high extraction forces for easy assembly.
- Initial fir tree serves as a locating feature for assistance in blind assembly applications.
Request your individual offer now
Request quote
More products in this product group:
| Application | Bundling Clips are designed for applications that require the bundle to be secured onto a surface using a mounting hole. Applications such as this can be found in a wide variety of industries such as the automotive, trucking, heavy equipment and solar and wind power manufacturing industries. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Internet Customer Notice | Scroll down for alternative automation-ready products. |
| Local order number | 151-00663 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | TC6FT6-PA66HIRHSUV-BK |
| Package Content | 10000pcs. |
| Package Content packed in | Pack |
| Product Family | Round holes |
| Product Group | Bundling Clips with Fir Tree |
| Short Description | Bundling clip for hole (round), L=39.3mm, black, 10000pcs. |
| Type | TC6FT6 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.001kg |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026702001 |
| Packaging 1 - Height (m) | 0.889m |
| Packaging 1 - Length (m) | 0.635m |
| Packaging 1 - Qty | 10000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.215080215m³ |
| Packaging 1 - Weight (kg) | 10.000001kg |
| Packaging 1 - Width (m) | 0.381m |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 10.860001kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 150000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 183.9kg |
| Packaging 4 - Width (m) | 0.8m |
