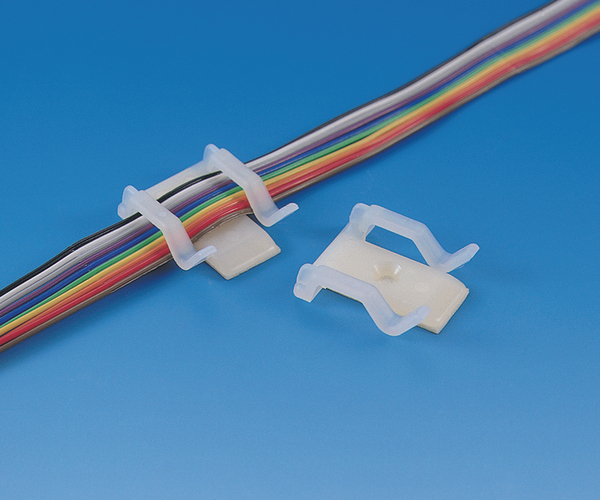

Cable clip, Ø3.2 mm, Dmax=3.0mm, natural, 100pcs.
Art.-No. 151-22819 | TY8H1-PA66-NA Details

  • Designed to hold cables, tubes or conduits without cable tie
  • Simply screwed or stuck (TY8H1S) onto panel
  • Side gripping fingers exert firm hold but allow for easy cable removal

Request your individual offer now

Application Ideal for holding ribbon cables in computer equipment, gaming machines or domestic appliances.
Colour Natural (NA)
Fixation Method screw-hole
Local order number TY8HI.NN3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION TY8H1-PA66-NA
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family TY8H1 with flat design
Product Group Self Adhesive / Screw Fixing Clips
Short Description Fixing Screw with flat design 26x24 mm natural
Type TY8H1
Variant Closed
Bundle Diameter max (metric) 3.0mm
Bundle ∅ 3.0mm
Height (H) 6.5mm
Length (L) 26.0mm
Nominal ∅ 3mm
Weight/Unit 0.001141kg
Width (W) 23.0mm
for Hole ∅ (FH) 3.2 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026122304
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00101
Packaging 1 - Weight (kg) 0.1211kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 2.642kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 147.816kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
