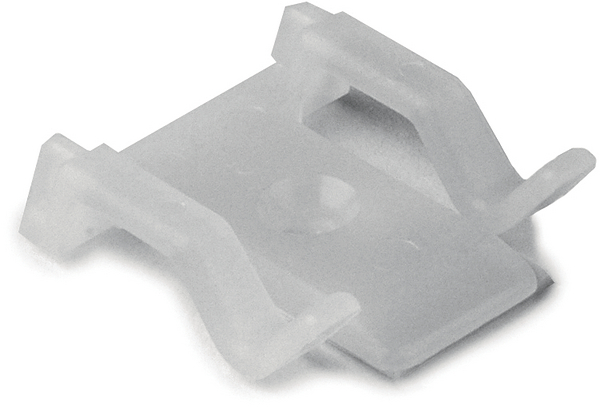

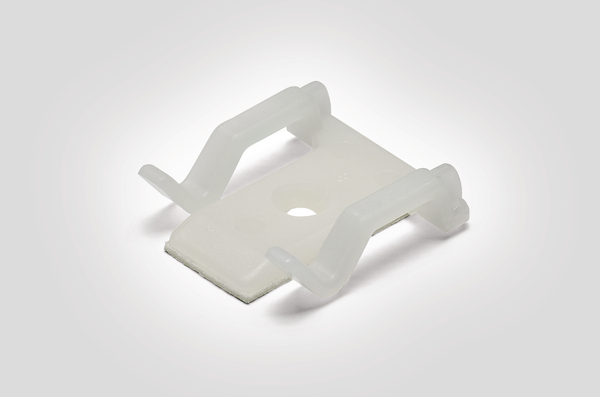

Cable clip for adhesive use/with pipe/tube holder, Ø3.2 mm, Dmax=3.0mm, natural, 100pcs.
Art.-No. 151-12819 | TY8H1S-PA66-NA Details

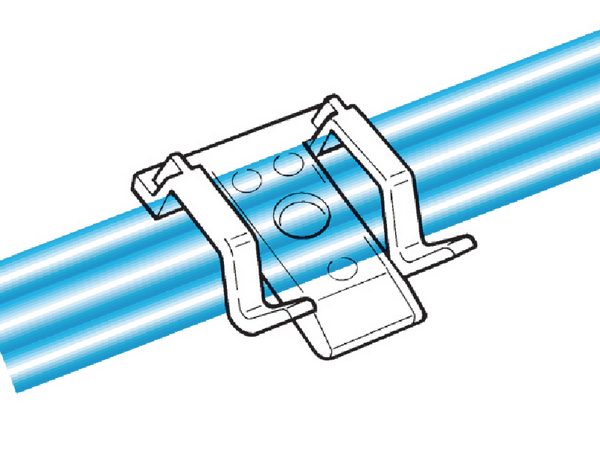

  • Designed to hold cables, tubes or conduits without cable tie

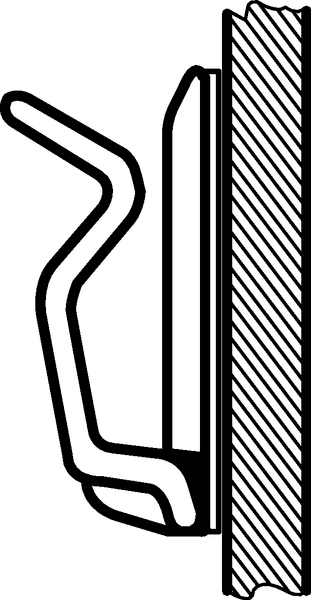

  • Simply screwed or stuck (TY8H1S) onto panel
  • Side gripping fingers exert firm hold but allow for easy cable removal

Request your individual offer now

Application Ideal for holding ribbon cables in computer equipment, gaming machines or domestic appliances.
Colour Natural (NA)
Fixation Method Stick
Material Polyamide 6.6 (PA66)
PART DESCRIPTION TY8H1S-PA66-NA
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family TY8H1(S) with flat design
Product Group Self Adhesive Clips
Short Description Clip with flat design Self Adhesive / Screw Fixing 26x23 mm
Type TY8H1S
Variant Closed
Bundle Diameter max (metric) 3.0mm
Bundle ∅ 3.0mm

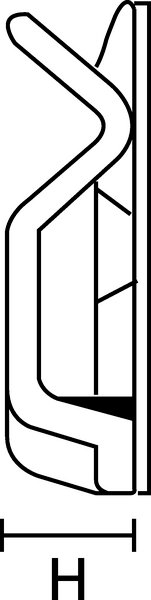

Height (H) 6.5mm

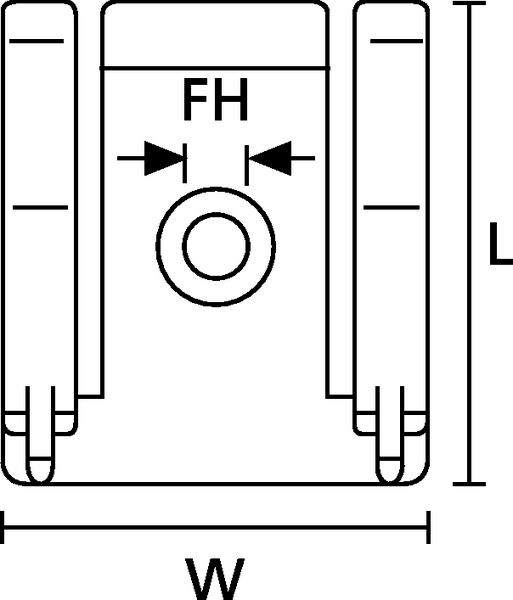

Length (L) 26.0mm
Nominal ∅ 3.0mm
Nominal ∅ (imperial) 0.12"
Weight/Unit 0.0013kg
Width (W) 23.0mm
for Hole ∅ (FH) 3.2 mm
Adhesive Acrylate with base of polyurethane foam
Adhesive Operating Temperature to +105 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Nato number 5975-12-189-6153
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026122205
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00118
Packaging 1 - Weight (kg) 0.15477kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.3154kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 180.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
