Plastic rivet fastener, ∅4.0 mm, black 1000pcs.
Art.-No. 241-11820 | TY8P2-SET-PA66-BK Details

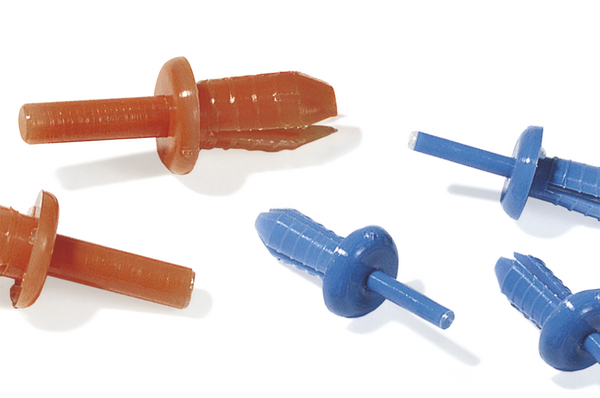

  • One Piece
  • Simply push pin into body of rivet
  • TY3P1 and TY8P1 pins inserted using rivet placement tool
  • TY8P2 has 'mushroom' head so pin is simply hammered in
  • TY8P2 consists of two unattached parts
Show more

Request your individual offer now

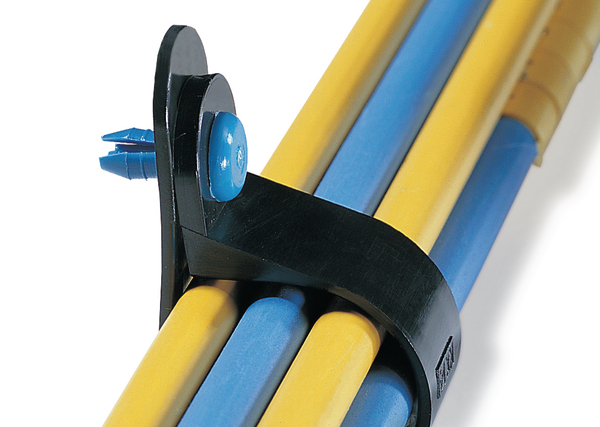

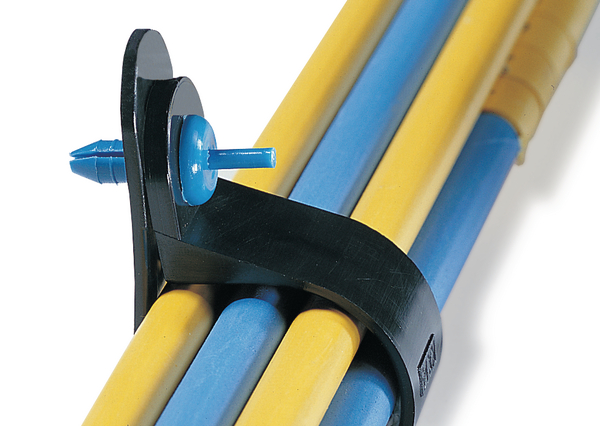

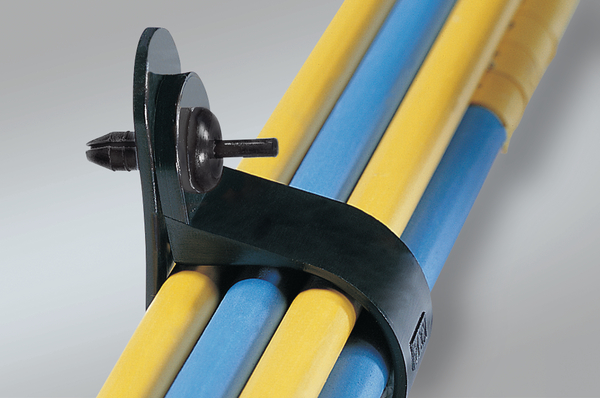

Application These simple to use plastic rivets are ideal for improving productivity in the working environment, saving time and money over more conventional jointing methods. Ideal for joining panels, or components to panels in a wide range of industries from automotive to panel building.
Application Tool HTWD-RT4
Colour Black (BK)
Local order number TY8P2-SET
Material Polyamide 6.6 (PA66)
PART DESCRIPTION TY8P2-SET-PA66-BK
Pack Cont. 1000pcs.
Package Content packed in pcs.
Product Family TY-Series
Product Group Plastic rivets
Short Description Plastic Rivet TY black
Type TY8P2-SET
Variant Percussion rivet

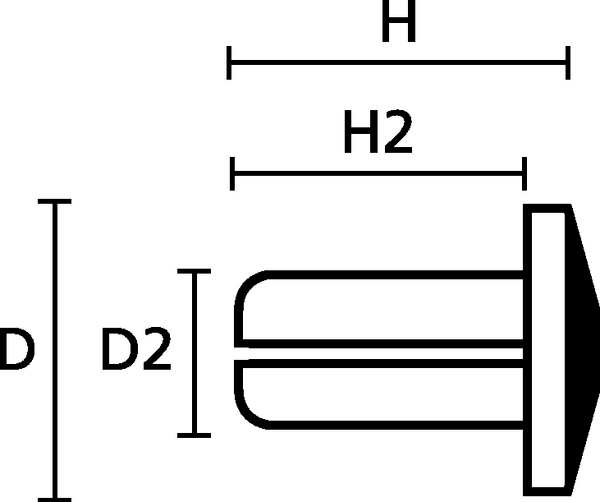

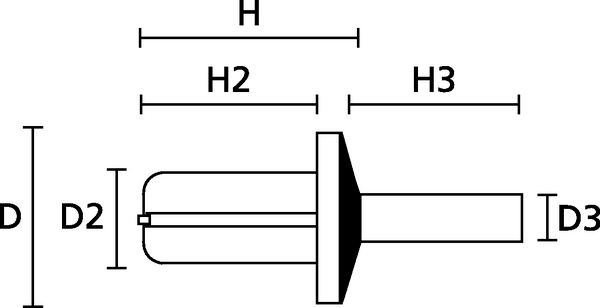

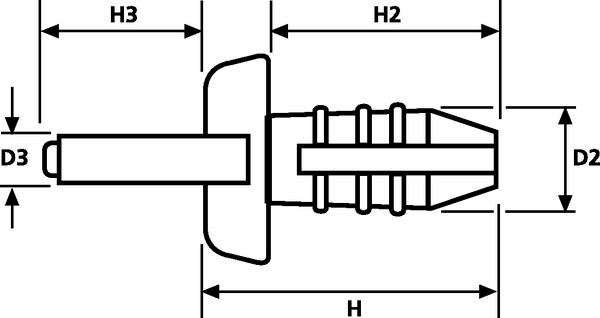

Diameter (D) 8.0mm
Height (H) 10.0mm
Height (H2) 8.0mm

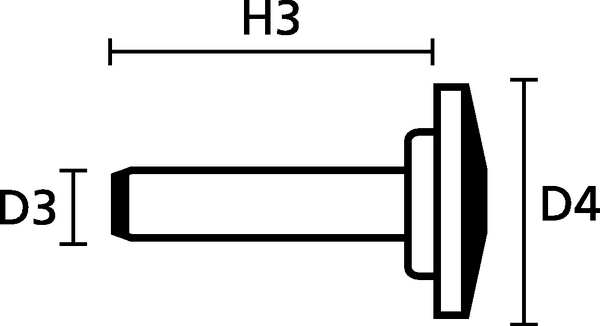

Height (H3) 11.5mm
Weight/Unit 0.00014kg
Width (W) 8.0mm
for Hole ∅ (FH) 4.0 mm
for Panel Thickness min - max 2.5 - 5.5 mm
∅ (D2) 4.0mm
∅ (D3) 2.6mm
∅ (D4) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free No
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026129846
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00186
Packaging 1 - Weight (kg) 0.147265kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.133m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0105
Packaging 3 - Weight (kg) 1.71765kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.208m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 800000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.16
Packaging 4 - Weight (kg) 158.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002377
ETIM 8.0 Key EC002377
ETIM 9.0 Key EC002377
UNSPSC Key 39121702
