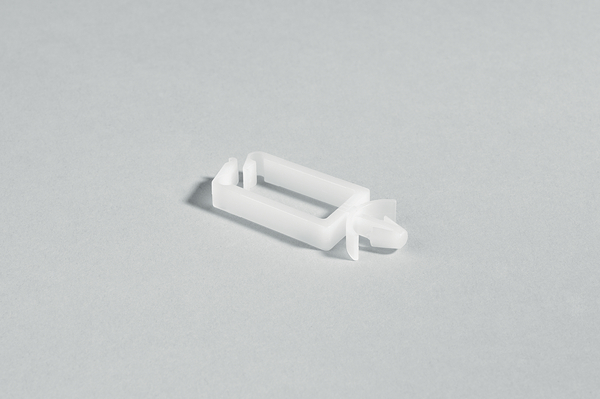

Cable clip for hole (round), ∅4.7 mm, Dmin=10.0mm, Dmax=11.0mm, natural, 500pcs.
Art.-No. 151-75109 | WPC10-PA66-NA Details

  • Accept single or multiple wires
  • Simply push wires into place
  • Arrowhead design for simple and secure installation
  • Access to panel only needed from one side
Package size

Request your individual offer now

Application With the increased complexitiy of electronic and electrical installations the use of WPC Clips enables cables to be installed using a minimum amount of space. A perfect solution for the frame/rails of controll cabinets or the white goods industry.
Colour Natural (NA)
Fixation Method Plug-in mounting
Key product features for faster processing, for narrow space, reusable, small diameter
Local order number WPC10.NN6P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION WPC10-PA66-NA
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family WPC-Series
Product Group Wire push in clips

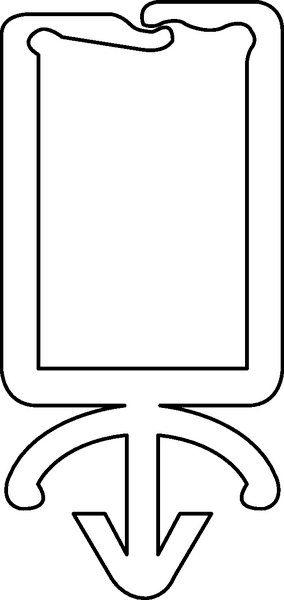

Short Description Harness clip 15x5.25x17.7 mm, close, round hole, arrow head, natural
Type WPC10
Variant Closed
Bundle Diameter max (metric) 11.0mm
Bundle ∅ 10.0-11.0mm
Bundle ∅ min. 10.0mm
Disc ∅ 15.0mm

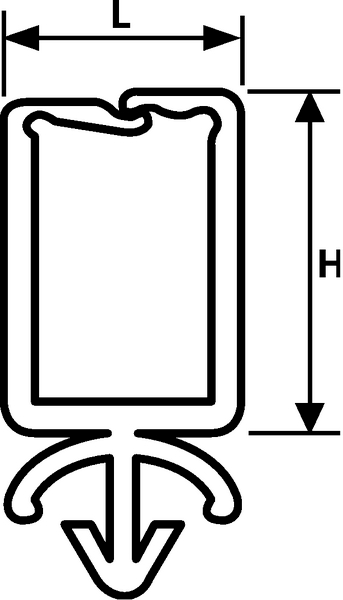

Height (H) 17.7mm
Length (L) 15.0mm
Nominal ∅ 11mm
Weight/Unit 0.0008kg

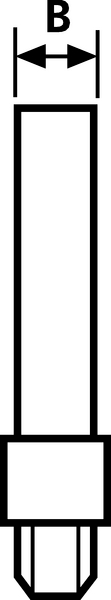

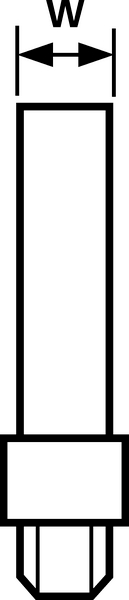

Width (W) 5.25mm
for Hole ∅ (FH) 4.7 mm

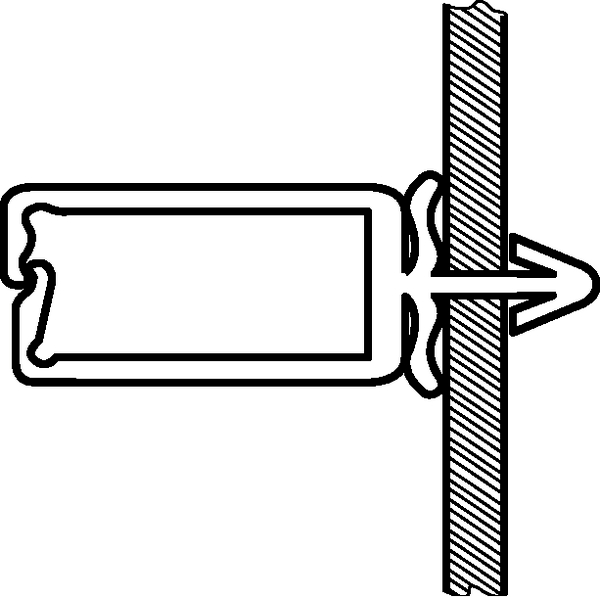

for Panel Thickness min - max 0.8 - 4 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660327667
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00242
Packaging 1 - Weight (kg) 0.400001kg
Packaging 1 - Width (m) 0.179m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 8.80202kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 197.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
