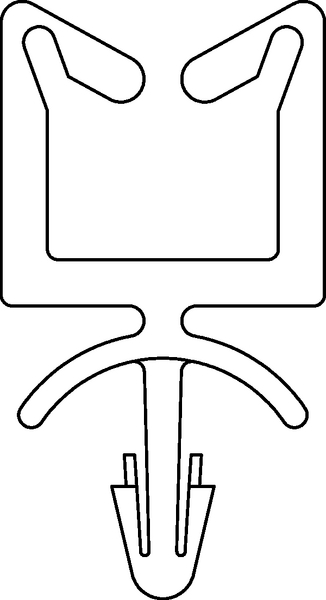

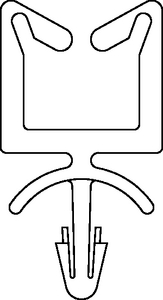

Cable clip for hole (round), T=3.7 - 6.1mm, ⌀4.0 mm, Dmin=2.5mm, Dmax=8.0mm
Art.-No. 151-00753 | WS02-PA66-NA |

Copied
WPC – Wire Push In Clip.
WPC – Wire Push In Clip.

    • Accept single or multiple wires
    • Simply push wires into place
    • Self-locking to prevent accidental removal
    • Arrowhead design for simple and secure installation
    • Access to panel only needed from one side
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Designed to fix wires and cables in panels, its shape allows that when the cable is pressed into the clip, it’s automatically locked.
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION WS02-PA66-NA
    Package Content 100pcs.
    Package Content packed in Bag
    Product Family WS Series
    Product Group Fastening clips
    Type WS02
    Bundle ⌀ 2.5-8.0mm
    Bundle ⌀ max. 8.0mm
    Bundle ⌀ min. 2.5mm
    Height (H) 5.4mm
    Length (L) 28.5mm
    Length (L3) 17.0mm
    Panel Thickness max. 3.7 - 6.1mm
    Width (W) 11.0mm
    for Hole ⌀ (FH) 4.0 mm
    for Panel Thickness min - max 3.7 - 6.1 mm
    Flammability UL 94 V2
    Min. Extraction Force (N) 100N
    Operating Temperature -40 °C to +85 °C
    Country of Origin BR
    GTIN-13 / EAN 7890176056672
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
